BL-LS0603HC - SMD LED LAMP

Features

  • Ø 1.6mmx0.8mm SMD, 0.8mm T.

📥 Download Datasheet

Datasheet Details

Part number BL-LS0603HC
Manufacturer Betlux
File Size 268.55 KB
Description SMD LED LAMP
Datasheet download datasheet BL-LS0603HC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BL-23G Emitter for Optical Fiber(GaAlAs) KODENSHI KOREA CORP
BL-8511 LED back light Everlight
BL-8723 IEE802.11 b/g/n WIFI + BT 2.1/3.0/4.0 USB MODULE ETC
BL-8723RB1 IEE802.11 b/g/n 2.4G 1T1R WIFI+BT V2.1+EDR/BT3.0/BT 3.0+HS/4.0 USB MODULE B-LINK ELECTRONIC
BL-B1121 LED BRIGHT LED ELECTRONICS

Other Datasheets by Betlux

Part Number Description
BL-LS0603EC SMD LED LAMP
BL-LS0603GC SMD LED LAMP
BL-LS0603LRC SMD LED LAMP
BL-LS0603SRC SMD LED LAMP
BL-LS0603URC SMD LED LAMP

Full PDF Text Transcription

Click to expand full text

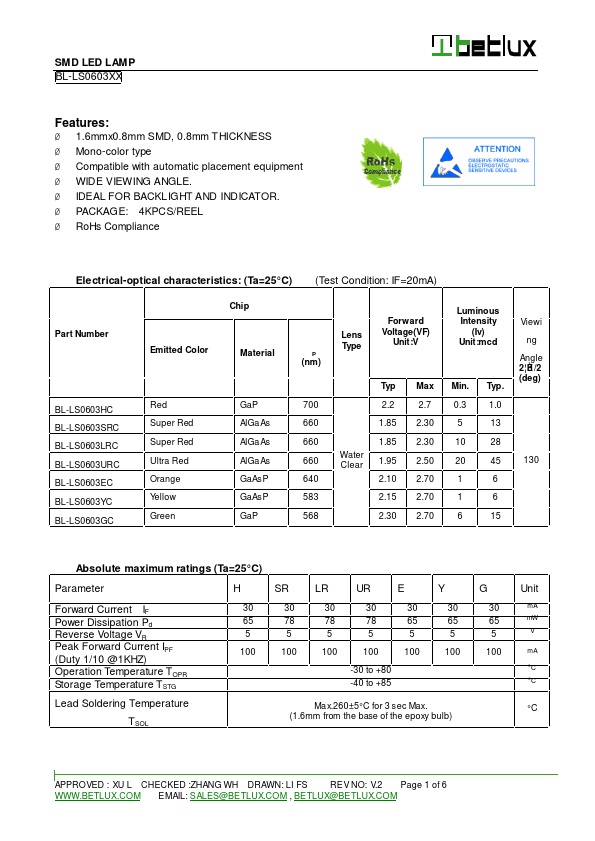

SMD LED LAMP BL-LS0603XX Features: Ø 1.6mmx0.8mm SMD, 0.8mm T HICKNESS Ø Mono-color type Ø Compatible with automatic placement equipment Ø WIDE VIEWING ANGLE. Ø IDEAL FOR BACKLIGHT AND INDICATOR. Ø PACKAGE: 4KPCS/REEL Ø RoHs Compliance Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA) Part Number BL-LS0603HC BL-LS0603SRC BL-LS0603LRC BL-LS0603URC BL-LS0603EC BL-LS0603YC BL-LS0603GC Chip Emitted Color Material Red Super Red Super Red Ultra Red Orange Yellow Green GaP AlGa As AlGa As AlGa As GaAs P GaAs P GaP P (nm) 700 660 660 660 640 583 568 Lens Type Forward Voltage(VF) Unit :V Typ Max 2.2 2.7 1.85 2.30 1.85 2.30 Water Clear 1.95 2.50 2.10 2.70 2.15 2.70 2.30 2.70 Luminous Intensity (Iv) Unit :mcd Min. Typ. 0.3 1.
