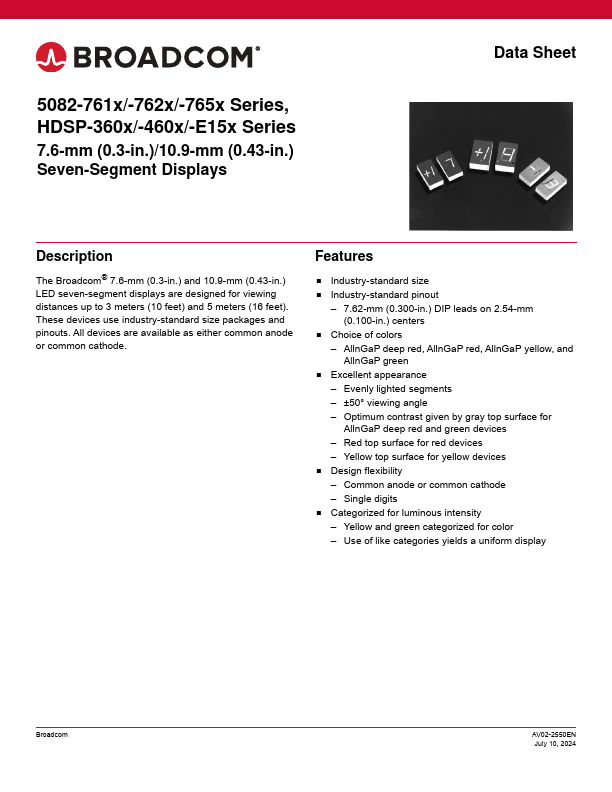

5082-7611 Datasheet Seven-segment Displays

Manufacturer: Broadcom

Overview: 5082-761x/-762x/-765x Series, HDSP-360x/-460x/-E15x Series 7.6-mm (0.3-in.)/10.9-mm (0.43-in.

This datasheet includes multiple variants, all published together in a single manufacturer document.

General Description

The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet).

These devices use industry-standard size packages and pinouts.

All devices are available as either common anode or common cathode.

Key Features

  • Industry-standard size.
  • Industry-standard pinout.
  • 7.62-mm (0.300-in. ) DIP leads on 2.54-mm (0.100-in. ) centers.
  • Choice of colors.
  • AllnGaP deep red, AllnGaP red, AllnGaP yellow, and AllnGaP green.
  • Excellent appearance.
  • Evenly lighted segments.
  • ±50° viewing angle.
  • Optimum contrast given by gray top surface for AllnGaP deep red and green devices.
  • Red top surface for red devices.
  • Yellow top surface for yellow devices.
