5082-7620 - Seven-Segment Displays

Download the 5082-7620 datasheet PDF. This datasheet also covers the 5082-7610 variant, as both devices belong to the same seven-segment displays family and are provided as variant models within a single manufacturer datasheet.

Description

The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet).

These devices use industry-standard size packages and pinouts.

All devices are available as either common anode or common cathode.

Features

  • Industry-standard size.
  • Industry-standard pinout.
  • 7.62-mm (0.300-in. ) DIP leads on 2.54-mm (0.100-in. ) centers.
  • Choice of colors.
  • AllnGaP deep red, AllnGaP red, AllnGaP yellow, and AllnGaP green.
  • Excellent appearance.
  • Evenly lighted segments.
  • ±50° viewing angle.
  • Optimum contrast given by gray top surface for AllnGaP deep red and green devices.
  • Red top surface for red devices.
  • Yellow top surface for yellow devices.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5082-7610-Broadcom.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
5082-7620 7-Segment Displays Agilent
5082-7621 7-Segment Displays Agilent
5082-7623 7-Segment Displays Agilent
5082-7626 7-Segment Displays Agilent
5082-762X 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display Agilent

Other Datasheets by Broadcom

Part Number Description
5082-7621 Seven-Segment Displays
5082-7610 Seven-Segment Displays
5082-7611 Seven-Segment Displays
5082-7650 Seven-Segment Displays
5082-7651 Seven-Segment Displays

Full PDF Text Transcription

Click to expand full text

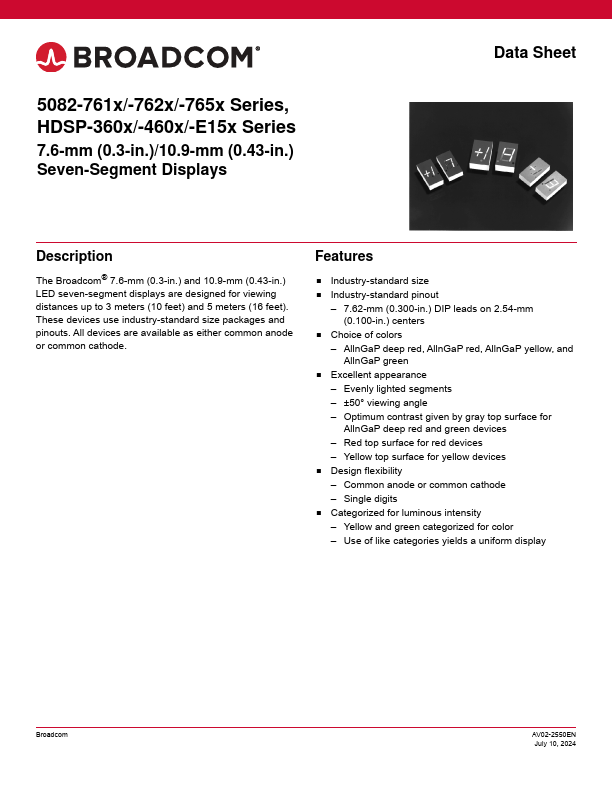

5082-761x/-762x/-765x Series, HDSP-360x/-460x/-E15x Series 7.6-mm (0.3-in.)/10.9-mm (0.43-in.) Seven-Segment Displays Data Sheet Description The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet). These devices use industry-standard size packages and pinouts. All devices are available as either common anode or common cathode. Features  Industry-standard size  Industry-standard pinout – 7.62-mm (0.300-in.) DIP leads on 2.54-mm (0.100-in.
