5962-9314002 - Power MOSFET Optocoupler

Download the 5962-9314002 datasheet PDF. This datasheet also covers the 5962-9314001 variant, as both devices belong to the same power mosfet optocoupler family and are provided as variant models within a single manufacturer datasheet.

General Description

The Broadcom® HSSR-7110, HSSR-7111, HSSR-7112, HSSR-711E, and SMD 5962-9314001, 5962-93140021 are single-channel power MOSFET optocouplers, constructed in eight-pin, hermetic, dual-in-line, ceramic packages.

The devices operate exactly like a solid-state relay.

Key Features

  • Dual marked with device part number and DLA standard microcircuit drawing (SMD).
  • ac/dc signal and power switching.
  • Compact solid-state bidirectional switch.
  • Manufactured and tested on a MIL-PRF-38534 certified line.
  • QML-38534, Class H and Class E.
  • Hermetically sealed 8-pin, dual-in-line package.
  • Small size and weight.
  • Performance guaranteed over.
  • 55°C to +125°C.
  • Connection A 0.8A, 1.0Ω.
  • Connection B 1.6A, 0.25Ω.
  • 1500 Vdc withstand t.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5962-9314001-Broadcom.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
5962-93109 Processor Miscellaneous Intel
5962-9310902MXA Processor Miscellaneous Intel
5962-90737 ANALOG SWITCH Siliconix
5962-9073703MPA ANALOG SWITCH Siliconix
5962-90854 Transistor Output Optocouplers HP

Other Datasheets by Broadcom

Part Number Description
5962-9314001 Power MOSFET Optocoupler
5962-90854 Transistor Output Optocouplers
5962-97557 Hermetically Sealed Analog Isolation Amplifier
5962-98002 High Gain Optocouplers
5962-87679 Transistor Output Optocouplers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

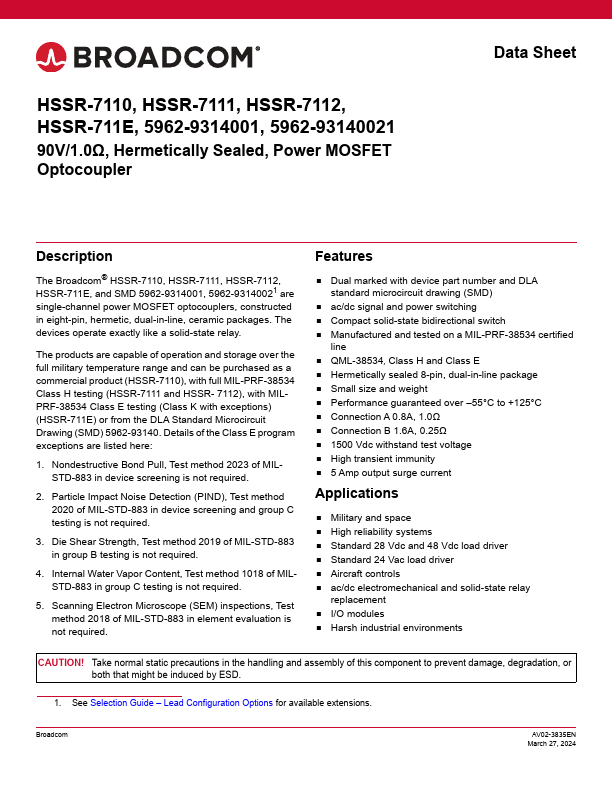

HSSR-7110, HSSR-7111, HSSR-7112, HSSR-711E, 5962-9314001, 5962-93140021 90V/1.0Ω, Hermetically Sealed, Power MOSFET Optocoupler Data Sheet Description The Broadcom® HSSR-7110, HSSR-7111, HSSR-7112, HSSR-711E, and SMD 5962-9314001, 5962-93140021 are single-channel power MOSFET optocouplers, constructed in eight-pin, hermetic, dual-in-line, ceramic packages. The devices operate exactly like a solid-state relay. The products are capable of operation and storage over the full military temperature range and can be purchased as a commercial product (HSSR-7110), with full MIL-PRF-38534 Class H testing (HSSR-7111 and HSSR- 7112), with MILPRF-38534 Class E testing (Class K with exceptions) (HSSR-711E) or from the DLA Standard Microcircuit Drawing (SMD) 5962-93140.
