ACSL-6210 - Digital Logic Gate Optocoupler

General Description

The Broadcom® ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers.

Integration of multiple optocouplers in monolithic form is achieved through patented process technology.

Key Features

  • Available in dual, triple and quad channel configurations.
  • Bi-directional.
  • Wide supply voltage range: 3.0V to 5.5V.
  • High-speed: 15 MBd typical, 10 MBd minimum.
  • 10kV/µs minimum Common Mode Rejection (CMR) at Vcm = 1000V.
  • LSTTL/TTL compatible.
  • Safety and regulatory approvals.
  • 2500 Vrms for 1 min. per UL1577.
  • cUL (CSA Component Acceptance Notice 5A).
  • IEC/EN/DIN EN 60747-5-5.
  • 16-pin narrow-body SOIC package for triple and quad chann.

📥 Download Datasheet

Datasheet Details

Part number ACSL-6210
Manufacturer Broadcom
File Size 1.48 MB
Description Digital Logic Gate Optocoupler
Datasheet download datasheet ACSL-6210 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ACSL-6210 Multi-Channel and Bi-Directional / 15 MBd Digital Logic Gate Optocoupler Agilent
ACSL-6300 Multi-Channel and Bi-Directional / 15 MBd Digital Logic Gate Optocoupler Agilent
ACSL-6310 Multi-Channel and Bi-Directional / 15 MBd Digital Logic Gate Optocoupler Agilent
ACSL-6400 Multi-Channel and Bi-Directional / 15 MBd Digital Logic Gate Optocoupler Agilent
ACSL-6410 Multi-Channel and Bi-Directional / 15 MBd Digital Logic Gate Optocoupler Agilent

Other Datasheets by Broadcom

Part Number Description
ACSL-6300 Digital Logic Gate Optocoupler
ACSL-6310 Digital Logic Gate Optocoupler
ACSL-6400 Digital Logic Gate Optocoupler
ACSL-6410 Digital Logic Gate Optocoupler
ACSL-6420 Digital Logic Gate Optocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

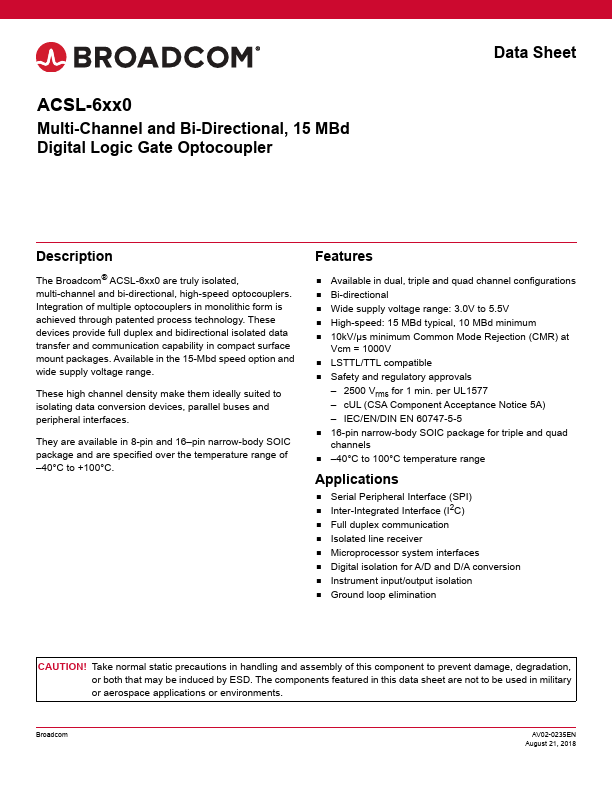

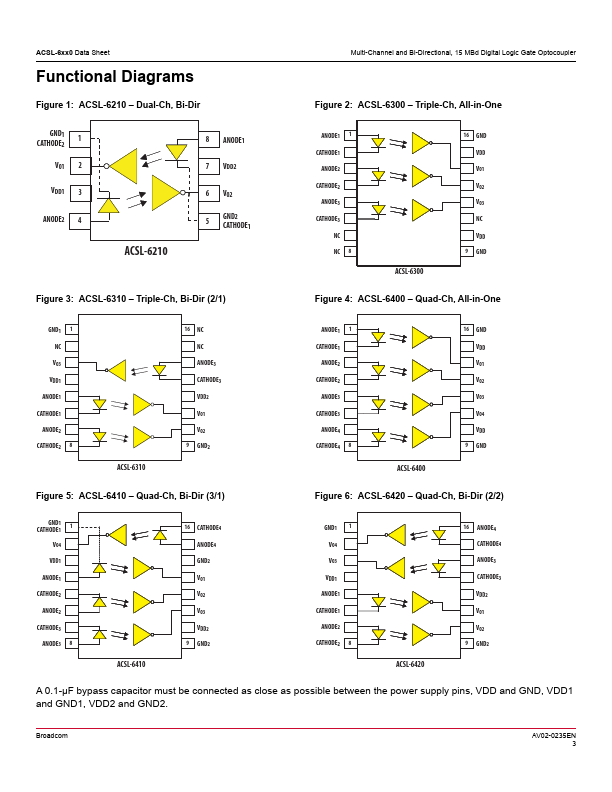

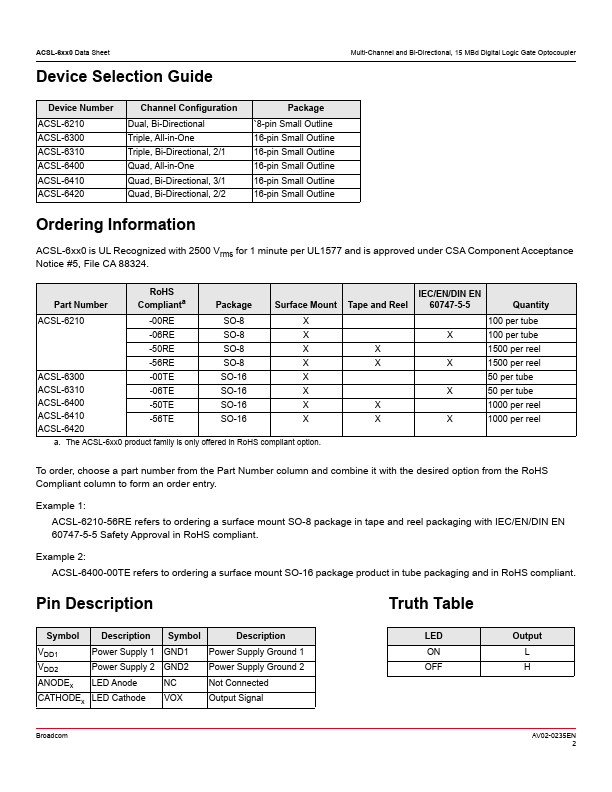

ACSL-6xx0 Multi-Channel and Bi-Directional, 15 MBd Digital Logic Gate Optocoupler Data Sheet Description The Broadcom® ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers. Integration of multiple optocouplers in monolithic form is achieved through patented process technology. These devices provide full duplex and bidirectional isolated data transfer and communication capability in compact surface mount packages. Available in the 15-Mbd speed option and wide supply voltage range. These high channel density make them ideally suited to isolating data conversion devices, parallel buses and peripheral interfaces. They are available in 8-pin and 16–pin narrow-body SOIC package and are specified over the temperature range of –40°C to +100°C.
