ACSL-6300 Overview
Key Specifications
Package: SOIC
Mount Type: Surface Mount
Pins: 16
Operating Voltage: 5.5 V

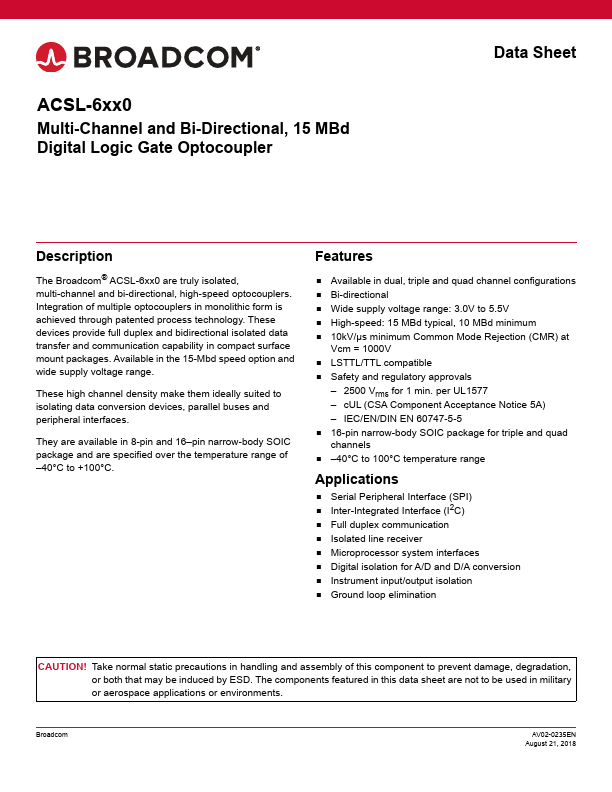

Description
The Broadcom® ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers. Integration of multiple optocouplers in monolithic form is achieved through patented process technology.

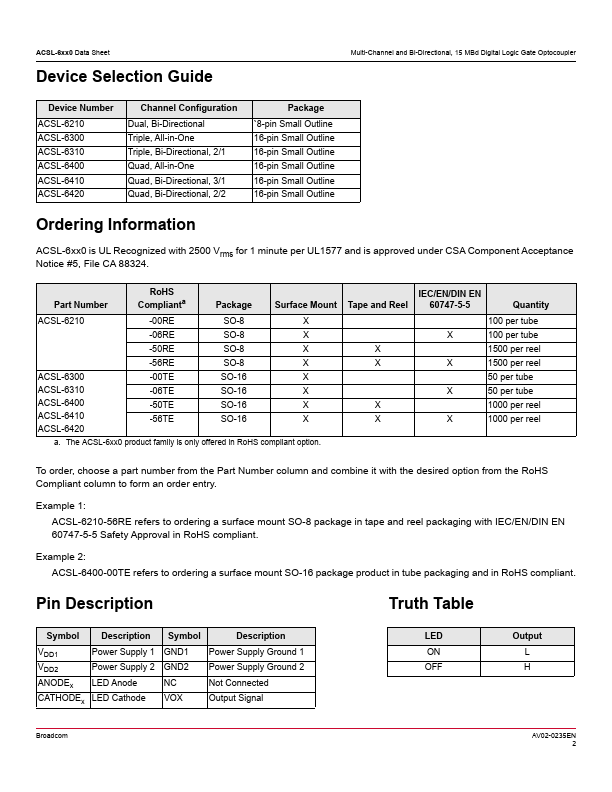

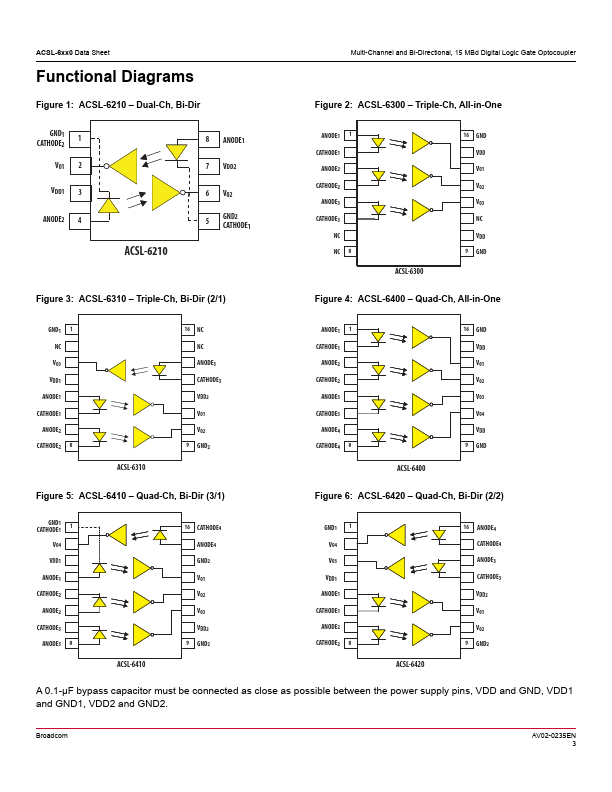

Key Features
- Available in dual, triple and quad channel configurations
- Bi-directional
- Wide supply voltage range: 3.0V to 5.5V
- High-speed: 15 MBd typical, 10 MBd minimum
- 10kV/µs minimum Common Mode Rejection (CMR) at Vcm = 1000V
- LSTTL/TTL compatible
- Safety and regulatory approvals – 2500 Vrms for 1 min. per UL1577 – cUL (CSA Component Acceptance Notice 5A) – IEC/EN/DIN EN 60747-5-5
- 16-pin narrow-body SOIC package for triple and quad channels
- 40°C to 100°C temperature range
