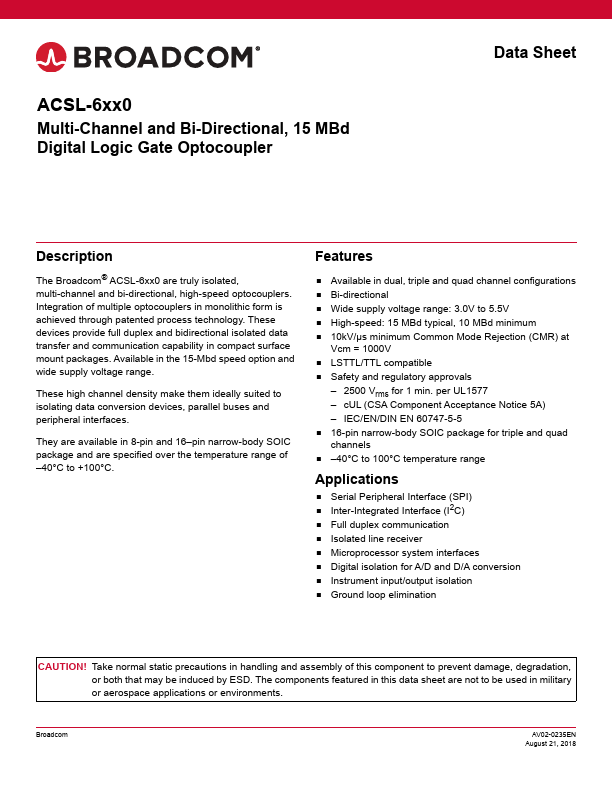

ACSL-6400 Overview
The Broad® ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers. Integration of multiple optocouplers in monolithic form is achieved through patented process technology. These devices provide full duplex and bidirectional isolated data transfer and munication capability in pact surface mount packages.
ACSL-6400 Key Features
- Available in dual, triple and quad channel configurations
- Bi-directional
- Wide supply voltage range: 3.0V to 5.5V
- High-speed: 15 MBd typical, 10 MBd minimum
- 10kV/µs minimum mon Mode Rejection (CMR) at
- LSTTL/TTL patible
- Safety and regulatory approvals
- 2500 Vrms for 1 min. per UL1577
- cUL (CSA ponent Acceptance Notice 5A)
- IEC/EN/DIN EN 60747-5-5
