ACSL-6410 Datasheet Digital Logic Gate Optocoupler

Manufacturer: Broadcom

Overview: ACSL-6xx0 Multi-Channel and Bi-Directional, 15 MBd Digital Logic Gate Optocoupler Data.

This datasheet includes multiple variants, all published together in a single manufacturer document.

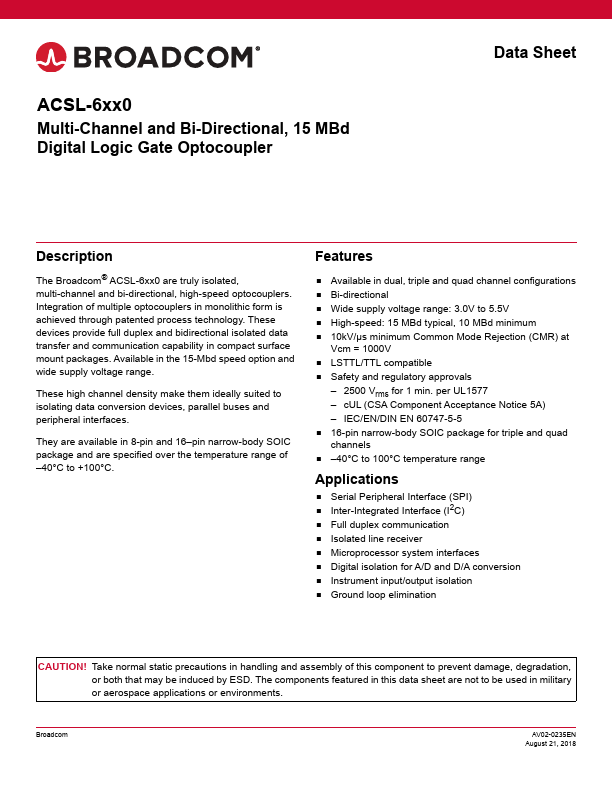

General Description

The Broadcom® ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers.

Integration of multiple optocouplers in monolithic form is achieved through patented process technology.

These devices provide full duplex and bidirectional isolated data transfer and communication capability in compact surface mount packages.

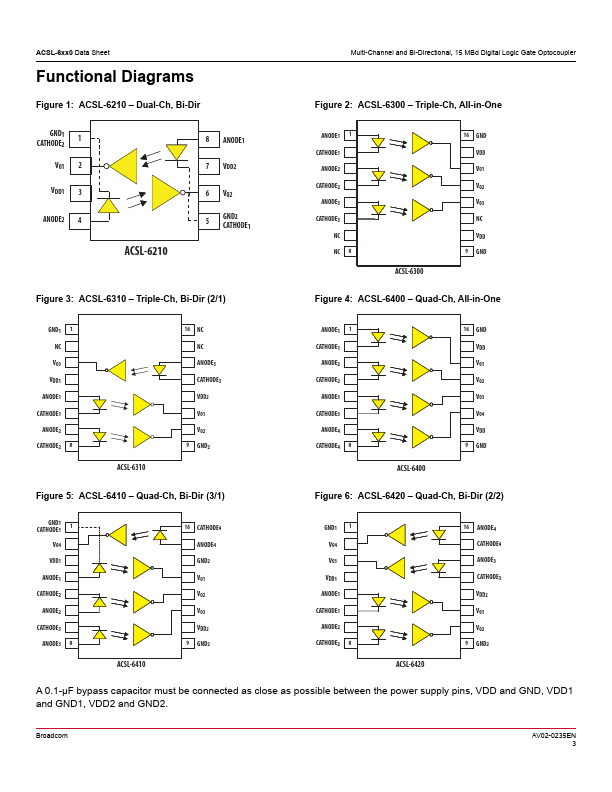

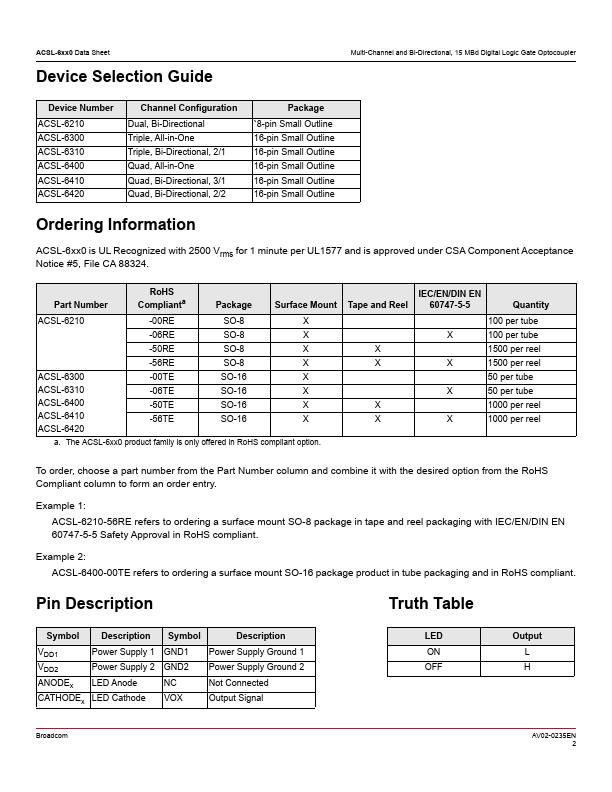

Key Features

  • Available in dual, triple and quad channel configurations.
  • Bi-directional.
  • Wide supply voltage range: 3.0V to 5.5V.
  • High-speed: 15 MBd typical, 10 MBd minimum.
  • 10kV/µs minimum Common Mode Rejection (CMR) at Vcm = 1000V.
  • LSTTL/TTL compatible.
  • Safety and regulatory approvals.
  • 2500 Vrms for 1 min. per UL1577.
  • cUL (CSA Component Acceptance Notice 5A).
  • IEC/EN/DIN EN 60747-5-5.
  • 16-pin narrow-body SOIC package for triple and quad chann.
