AFBR-S4P11P012R - NIR Dual-Channel Silicon Photomultiplier

General Description

The Broadcom® AFBR-S4P11P012R is a silicon photomultiplier (SiPM) that is optimized for ultra-sensitive detection of light in the near-infrared region of the electromagnetic spectrum.

Key Features

  • 28% PDE at λ = 905 nm.
  • 26% PDE at λ = 650 nm.
  • Wide dynamic range.
  • Very fast cell recharge time constant of 15 ns.
  • Compact molded lead frame package.
  • Operating temperature range from.
  • 40°C to +85°C.
  • RoHS compliant.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AFBR-S10TR001Z Compact 650 nm Analog Transceiver AVAGO
AFBR-2408Z DC-50MBd Miniature Link Fiber Optic Receiver Avago
AFBR-2409Z 50MBd Miniature Link Fiber Optic Receiver Avago
AFBR-2418MZ DC-50MBd Miniature Link Fiber Optic Receiver Avago
AFBR-2418TZ DC-50MBd Miniature Link Fiber Optic Receiver Avago

Other Datasheets by Broadcom

Part Number Description
AFBR-S4N33C013 NUV-HD Single Silicon Photo Multiplier
AFBR-S4N44C013 NUV-HD Single Silicon Photo Multiplier
AFBR-S4N44P164M 4 x 4 NUV-MT Silicon Photomultiplier Array
AFBR-S4N66C013 NUV-HD Single Silicon Photo Multiplier
AFBR-S4N66P024M 2x1 NUV-MT Silicon Photomultiplier Array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

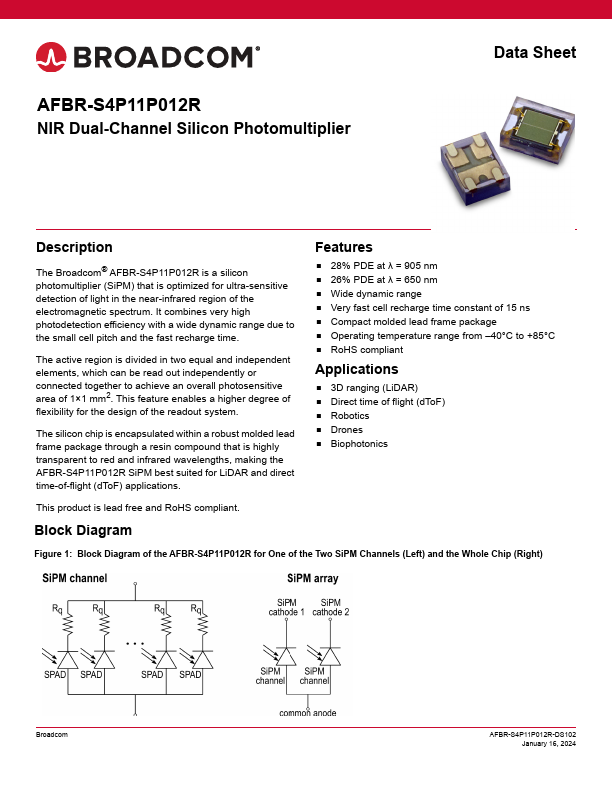

AFBR-S4P11P012R NIR Dual-Channel Silicon Photomultiplier Data Sheet Description The Broadcom® AFBR-S4P11P012R is a silicon photomultiplier (SiPM) that is optimized for ultra-sensitive detection of light in the near-infrared region of the electromagnetic spectrum. It combines very high photodetection efficiency with a wide dynamic range due to the small cell pitch and the fast recharge time. The active region is divided in two equal and independent elements, which can be read out independently or connected together to achieve an overall photosensitive area of 1×1 mm2. This feature enables a higher degree of flexibility for the design of the readout system.
