BCM56990 - 25.6-Tb/s Multilayer Switch

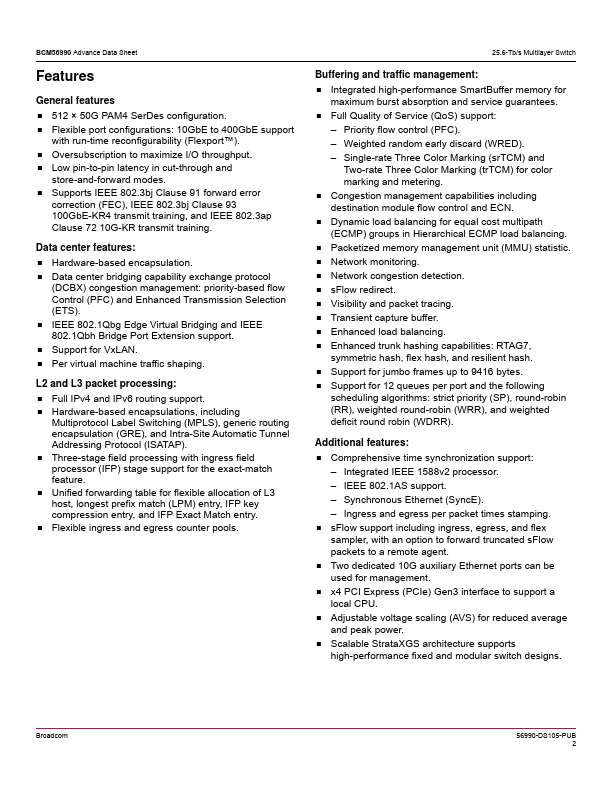

Key Features

  • a maximum of 64 integrated Blackhawk7 SerDes cores, each with eight integrated 56-Gb/s PAM4 SerDes transceivers and associated PCS for native support of numerous physical connectivity options, enabling a broad range of media, speed, and reach. The BCM56990 delivers highbandwidth, glueless network connectivity up to 25.6 Tb/s on a single chip. The BCM56990 is a high-performance and high-capacity device designed to meet the requirements for next-generation data center and cloud computing environme.

📥 Download Datasheet

Datasheet Details

Part number BCM56990
Manufacturer Broadcom
File Size 811.33 KB
Description 25.6-Tb/s Multilayer Switch
Datasheet download datasheet BCM56990 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCM56DS 1A NPN/NPN matched double transistors nexperia
BCM53DS 1A PNP/PNP matched double transistors nexperia
BCM-7602-G01 BLE Transparent Transmission Module Holtek Semiconductor
BCM20737 Single-Chip Bluetooth Low Energy-Only System-On-Chip Cypress Semiconductor
BCM2711 Processor Raspberry Pi

Other Datasheets by Broadcom

Part Number Description
BCM56980 12.8 Tb/s Multilayer Switch
BCM5220 10/100BASE-TX/FX Transceiver
BCM5221 10/100BASE-TX/FX Transceiver
BCM5228 10/100BASE-TX/FX Transceiver
BCM52311 Knowledge-Based Processor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

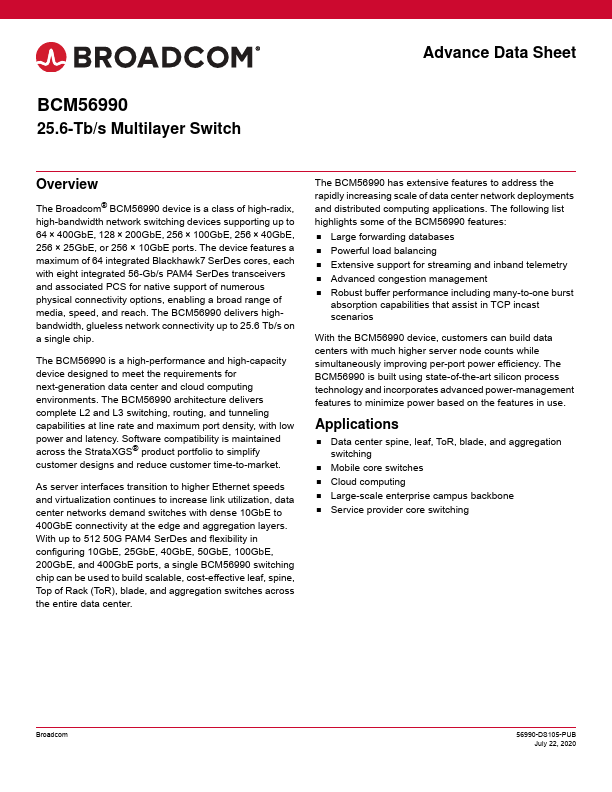

BCM56990 25.6-Tb/s Multilayer Switch Advance Data Sheet Overview The Broadcom® BCM56990 device is a class of high-radix, high-bandwidth network switching devices supporting up to 64 × 400GbE, 128 × 200GbE, 256 × 100GbE, 256 × 40GbE, 256 × 25GbE, or 256 × 10GbE ports. The device features a maximum of 64 integrated Blackhawk7 SerDes cores, each with eight integrated 56-Gb/s PAM4 SerDes transceivers and associated PCS for native support of numerous physical connectivity options, enabling a broad range of media, speed, and reach. The BCM56990 delivers highbandwidth, glueless network connectivity up to 25.6 Tb/s on a single chip. The BCM56990 is a high-performance and high-capacity device designed to meet the requirements for next-generation data center and cloud computing environments.
