BCM5720-2P - Dual-Port Ethernet Server Adapter

General Description

The Broadcom® NetXtreme® BCM5720-2P is a dual-port 10/100/1000 Mb/s x1 PCI Express (PCIe) Ethernet adapter that supports the IEEE 802.3ab standard over Category 5 twisted-pair cable.

Key Features

  • Dual-port Gigabit Ethernet (GbE) Adapter.
  • IEEE 802.3ab 10/100/1000 Mb/s Gigabit Ethernet- compliant.
  • Virtual LANs (VLANs): IEEE 802.1q VLAN tagging.
  • x1 PCI Express v1.x and v2.x.
  • Energy Efficient Ethernet-compliant with IEEE Standard 802.3az-2010.
  • MSI and MSI-X capabilities.
  • up to 17 MSI-X vectors.
  • I/O virtualization support for VMWare, NetQueue, and Microsoft VMQ.
  • 17 receive queues and 16 transmit queues per port.
  • 17 MSI-X vectors sup.

📥 Download Datasheet

Datasheet Details

Part number BCM5720-2P
Manufacturer Broadcom
File Size 301.51 KB
Description Dual-Port Ethernet Server Adapter
Datasheet download datasheet BCM5720-2P Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCM53DS 1A PNP/PNP matched double transistors nexperia
BCM56DS 1A NPN/NPN matched double transistors nexperia
BCM-7602-G01 BLE Transparent Transmission Module Holtek Semiconductor
BCM20737 Single-Chip Bluetooth Low Energy-Only System-On-Chip Cypress Semiconductor
BCM2711 Processor Raspberry Pi

Other Datasheets by Broadcom

Part Number Description
BCM5220 10/100BASE-TX/FX Transceiver
BCM5221 10/100BASE-TX/FX Transceiver
BCM5228 10/100BASE-TX/FX Transceiver
BCM52311 Knowledge-Based Processor
BCM5238 10/100BASE-TX Transceiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

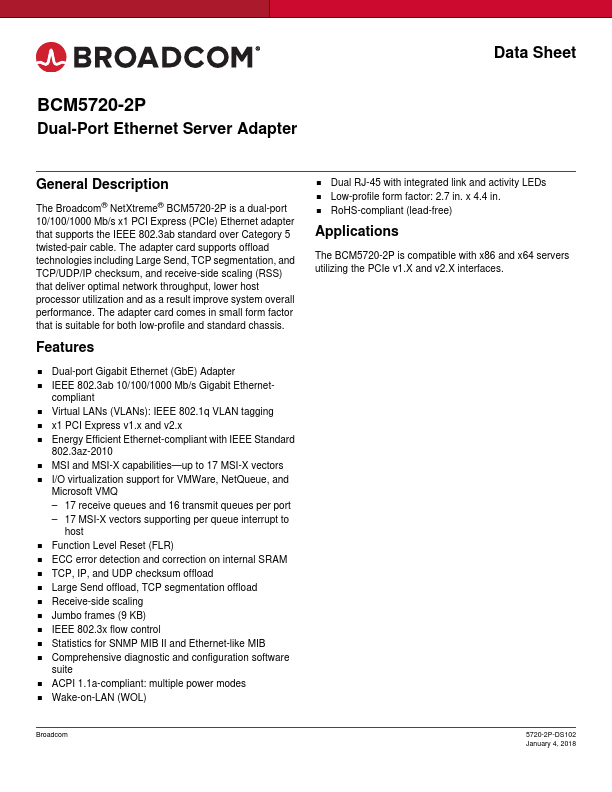

BCM5720-2P Dual-Port Ethernet Server Adapter Data Sheet General Description The Broadcom® NetXtreme® BCM5720-2P is a dual-port 10/100/1000 Mb/s x1 PCI Express (PCIe) Ethernet adapter that supports the IEEE 802.3ab standard over Category 5 twisted-pair cable. The adapter card supports offload technologies including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and receive-side scaling (RSS) that deliver optimal network throughput, lower host processor utilization and as a result improve system overall performance. The adapter card comes in small form factor that is suitable for both low-profile and standard chassis. Features  Dual-port Gigabit Ethernet (GbE) Adapter  IEEE 802.3ab 10/100/1000 Mb/s Gigabit Ethernet- compliant  Virtual LANs (VLANs): IEEE 802.
