BCM81724 - 8 x 56 Gb/s PAM-4 to 16 x 25 Gb/s NRZ Forward and Reverse Gearbox

General Description

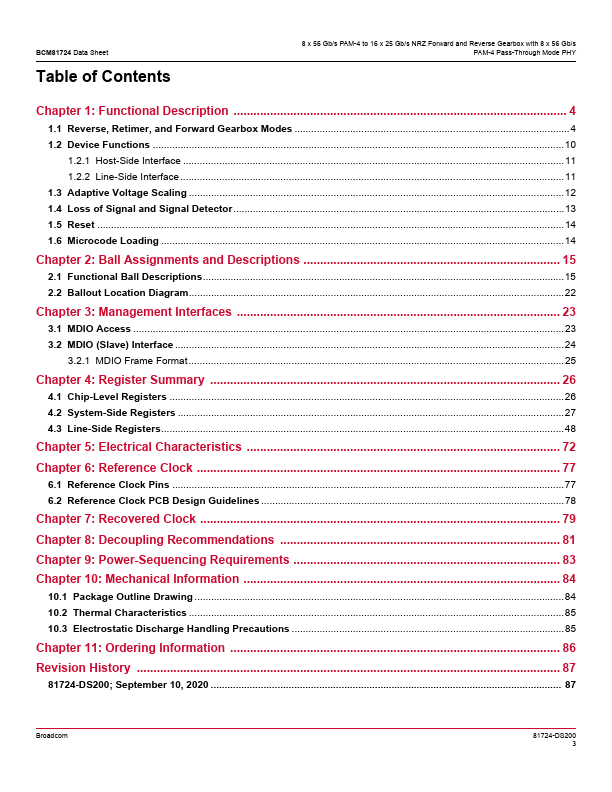

4 1.1 Reverse, Retimer, and Forward Gearbox Modes 4 1.2 Device Functions 10 1.2.1 Host-Side Interface 11 1.2.2 Line-Side Interface11 1.3 Adaptive Voltage Scaling 12 1.4 Loss of Signal and Signal Detector13 1.5 Reset 14 1.6 Microcode Loading 14 Chapter 2: Ball Assignments and Descriptions 15 2.1 Fu

Key Features

  • Host-side interface: 30 dB (both NRZ and PAM-4 modes).
  • Line-side interface:.
  • 35 dB (NRZ mode).
  • 20 dB (PAM-4 mode).
  • Chip-to-module (C2M) compliant.

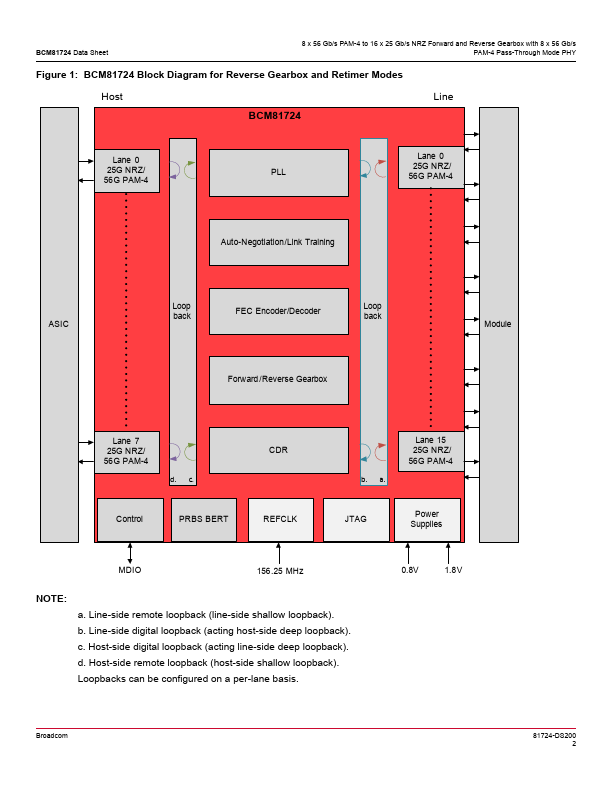

  • Forward and Reverse Gearbox mode and Retimer mode.
  • Supports forward error correction (FEC).
  • Supports CR mode in Reverse Gearbox mode.
  • Integrated AC-coupling capacitors on the system-side and line-side receivers.
  • Multiple standard and line rate support for both PAM-4 and NRZ.
  • Continuou.

📥 Download Datasheet

Datasheet Details

Part number BCM81724
Manufacturer Broadcom
File Size 586.04 KB
Description 8 x 56 Gb/s PAM-4 to 16 x 25 Gb/s NRZ Forward and Reverse Gearbox
Datasheet download datasheet BCM81724 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCM846BS NPN/NPN matched double transistor nexperia
BCM846BS NPN/NPN matched double transistor NXP
BCM846BS-Q NPN/NPN matched double transistor nexperia
BCM846S NPN Silicon AF Transistor Array Infineon Technologies AG
BCM847BS NPN/NPN matched double transistors NXP Semiconductors

Other Datasheets by Broadcom

Part Number Description
BCM81356 PAM-4 Duplex PHY
BCM84891L 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX Transceiver
BCM87326 7-nm 16 x 56-Gb/s PAM-4 Duplex PHY
BCM20707 Bluetooth SoC
BCM20710 Transceiver and Baseband Processor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

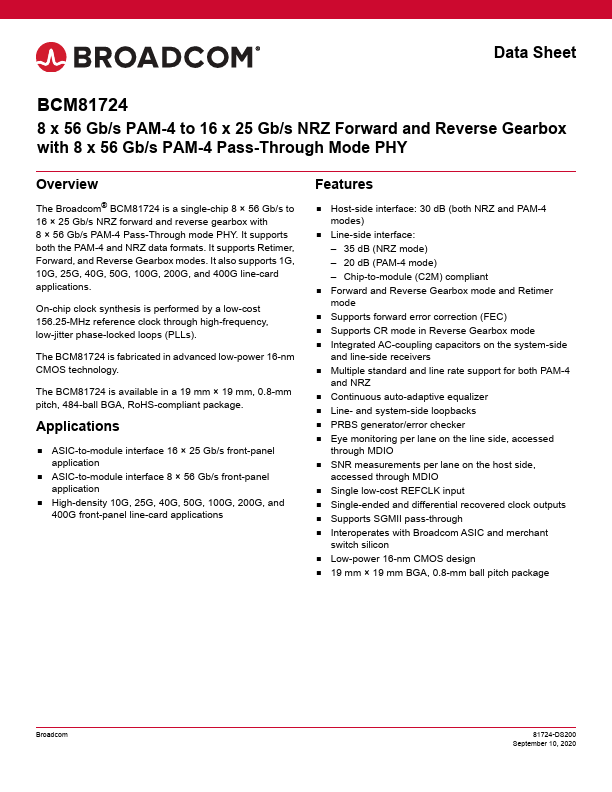

Data Sheet BCM81724 8 x 56 Gb/s PAM-4 to 16 x 25 Gb/s NRZ Forward and Reverse Gearbox with 8 x 56 Gb/s PAM-4 Pass-Through Mode PHY Overview The Broadcom® BCM81724 is a single-chip 8 × 56 Gb/s to 16 × 25 Gb/s NRZ forward and reverse gearbox with 8 × 56 Gb/s PAM-4 Pass-Through mode PHY. It supports both the PAM-4 and NRZ data formats. It supports Retimer, Forward, and Reverse Gearbox modes. It also supports 1G, 10G, 25G, 40G, 50G, 100G, 200G, and 400G line-card applications. On-chip clock synthesis is performed by a low-cost 156.25-MHz reference clock through high-frequency, low-jitter phase-locked loops (PLLs). The BCM81724 is fabricated in advanced low-power 16-nm CMOS technology. The BCM81724 is available in a 19 mm × 19 mm, 0.8-mm pitch, 484-ball BGA, RoHS-compliant package.
