Broadcom HCPL-817
HCPL-817-xxxx is UL Recognized with 5000 Vrms for 1 minute per UL1577 and is approved under CSA Component Acceptance Notice #5, File CA 88324.| Part No. | HCPL-817 |
|---|---|
| Datasheet | HCPL-817 Download |
| Manufacturer |  Broadcom |
| Description | Phototransistor Optocoupler |
| Buy | Stock & Price |
DESCRIPTION

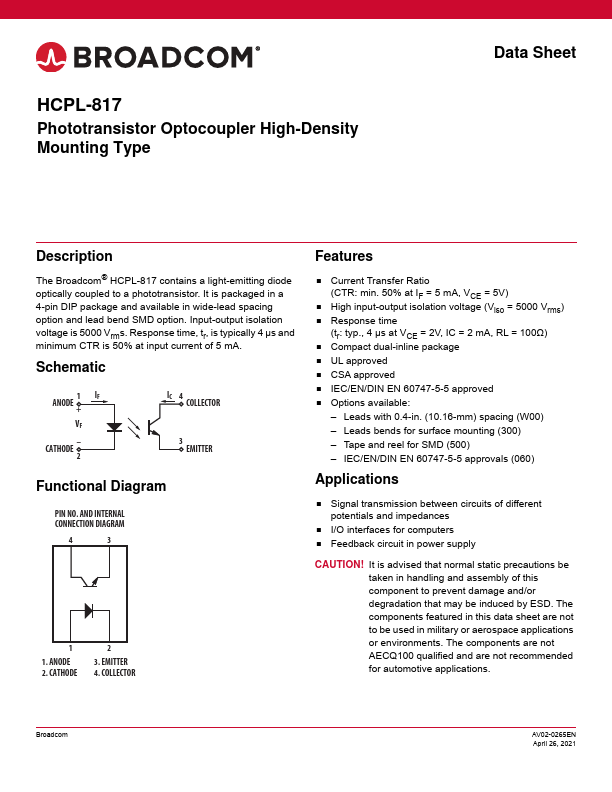

The Broadcom® HCPL-817 contains a light-emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin DIP package and available in wide-lead spacing option and lead bend SMD option. Input-output isolation voltage is 5000 Vrms. Response time, tr, is typically 4 µs and minimum CTR is 50% at input current of 5 mA. Schematic 1 IF ANODE + VF – CATHODE 2 IC 4 COLLECTOR 3 EMITTER Functional Diagram PIN NO. AND INTERNAL CONNECTION DIAGRAM 4 3 1 1. ANODE 2. CATHODE 2 3. EMITTER 4. COLLECTORFEATURES
● Current Transfer Ratio (CTR: min. 50% at IF = 5 mA, VCE = 5V)● High input-output isolation voltage (Viso = 5000 Vrms)
● Response time (tr: typ., 4 µs at VCE = 2V, IC = 2 mA, RL = 100Ω)
● Compact dual-inline package
● UL approved
● CSA approved
● IEC/EN/DIN EN 60747-5-5 approved
● Options available: – Leads with 0.4-in. (10.16-mm) spacing (W00) – Leads bends for surface mounting (300) – Tape and reel for SMD (500) – IEC/EN/DIN EN 60747-5-5 approvals (060) Application...
