HDSP-2530 - Orange Eight-Character 5-mm Smart Alphanumeric Display

Download the HDSP-2530 datasheet PDF. This datasheet also covers the HDSP-2534 variant, as both devices belong to the same orange eight-character 5-mm smart alphanumeric display family and are provided as variant models within a single manufacturer datasheet.

General Description

The Broadcom® HDSP-253x is ideal for applications where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required.

These devices are eight-digit, 5 × 7 dot matrix, alphanumeric displays.

Key Features

  • are accessed through a bidirectional eight-bit data bus.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HDSP-2534-Broadcom.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HDSP-2530
Manufacturer Broadcom
File Size 771.27 KB
Description Orange Eight-Character 5-mm Smart Alphanumeric Display
Datasheet download datasheet HDSP-2530 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HDSP-2530 Smart Alphanumeric Display AVAGO
HDSP-2530 Eight Character 5 mm Smart Alphanumeric Display Agilent
HDSP-2531 Eight Character 5 mm Smart Alphanumeric Display Agilent
HDSP-2531 Smart Alphanumeric Display AVAGO
HDSP-2532 Smart Alphanumeric Display AVAGO

Other Datasheets by Broadcom

Part Number Description
HDSP-2531 Yellow Eight-Character 5-mm Smart Alphanumeric Display
HDSP-2532 HER Eight-Character 5-mm Smart Alphanumeric Display
HDSP-2533 Green Eight-Character 5-mm Smart Alphanumeric Display
HDSP-2534 Deep Red Eight-Character 5-mm Smart Alphanumeric Display
HDSP-2500 Alphanumeric Displays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

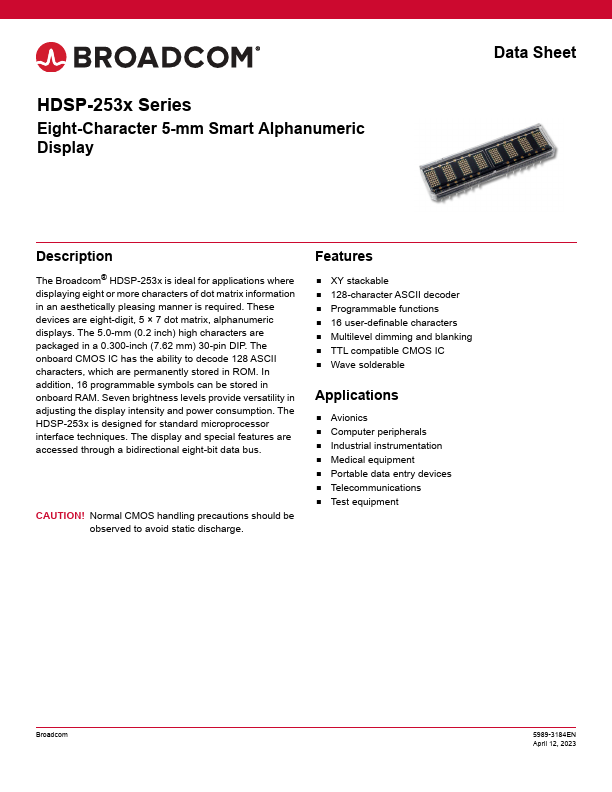

HDSP-253x Series Eight-Character 5-mm Smart Alphanumeric Display Data Sheet Description The Broadcom® HDSP-253x is ideal for applications where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are eight-digit, 5 × 7 dot matrix, alphanumeric displays. The 5.0-mm (0.2 inch) high characters are packaged in a 0.300-inch (7.62 mm) 30-pin DIP. The onboard CMOS IC has the ability to decode 128 ASCII characters, which are permanently stored in ROM. In addition, 16 programmable symbols can be stored in onboard RAM. Seven brightness levels provide versatility in adjusting the display intensity and power consumption. The HDSP-253x is designed for standard microprocessor interface techniques.
