HDSP-3601 - Seven-Segment Displays

Download the HDSP-3601 datasheet PDF. This datasheet also covers the HDSP-3600 variant, as both devices belong to the same seven-segment displays family and are provided as variant models within a single manufacturer datasheet.

General Description

The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet).

These devices use industry-standard size packages and pinouts.

All devices are available as either common anode or common cathode.

Key Features

  • Industry-standard size.
  • Industry-standard pinout.
  • 7.62-mm (0.300-in. ) DIP leads on 2.54-mm (0.100-in. ) centers.
  • Choice of colors.
  • AllnGaP deep red, AllnGaP red, AllnGaP yellow, and AllnGaP green.
  • Excellent appearance.
  • Evenly lighted segments.
  • ±50° viewing angle.
  • Optimum contrast given by gray top surface for AllnGaP deep red and green devices.
  • Red top surface for red devices.
  • Yellow top surface for yellow devices.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HDSP-3600-Broadcom.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
HDSP-3601 7-Segment Displays Agilent
HDSP-3600 7-Segment Displays Agilent
HDSP-3603 7-Segment Displays Agilent
HDSP-3606 7-Segment Displays Agilent
HDSP-301A Seven Segment Displays Agilent

Other Datasheets by Broadcom

Part Number Description
HDSP-3600 Seven-Segment Displays
HDSP-332E General-Purpose Seven-Segment Display
HDSP-333A General-Purpose Seven-Segment Display
HDSP-333E General-Purpose Seven-Segment Display
HDSP-333G General-Purpose Seven-Segment Display

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

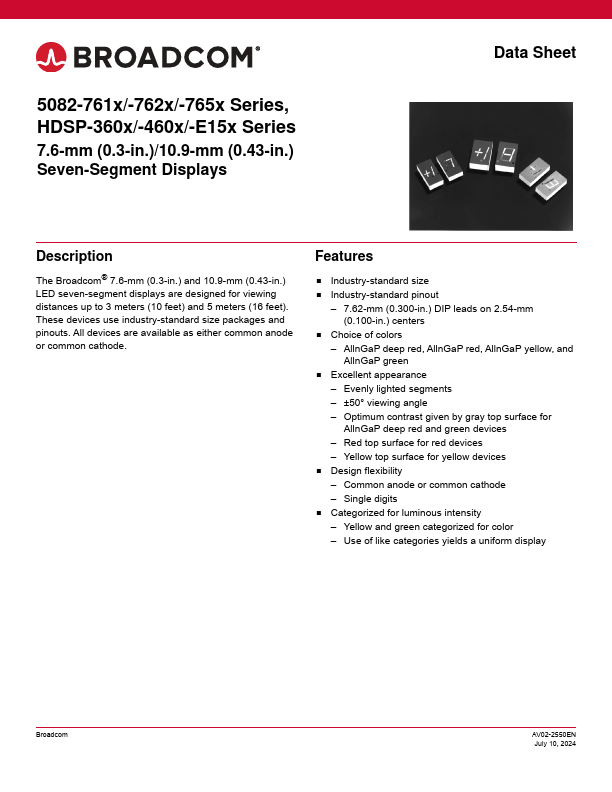

5082-761x/-762x/-765x Series, HDSP-360x/-460x/-E15x Series 7.6-mm (0.3-in.)/10.9-mm (0.43-in.) Seven-Segment Displays Data Sheet Description The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet). These devices use industry-standard size packages and pinouts. All devices are available as either common anode or common cathode. Features  Industry-standard size  Industry-standard pinout – 7.62-mm (0.300-in.) DIP leads on 2.54-mm (0.100-in.
