HDSP-4601 - Seven-Segment Displays

This page provides the datasheet information for the HDSP-4601, a member of the HDSP-3600 Seven-Segment Displays family.

Datasheet Summary

Description

The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet).

These devices use industry-standard size packages and pinouts.

All devices are available as either common anode or common cathode.

Features

  • Industry-standard size.
  • Industry-standard pinout.
  • 7.62-mm (0.300-in. ) DIP leads on 2.54-mm (0.100-in. ) centers.
  • Choice of colors.
  • AllnGaP deep red, AllnGaP red, AllnGaP yellow, and AllnGaP green.
  • Excellent appearance.
  • Evenly lighted segments.
  • ±50° viewing angle.
  • Optimum contrast given by gray top surface for AllnGaP deep red and green devices.
  • Red top surface for red devices.
  • Yellow top surface for yellow devices.

📥 Download Datasheet

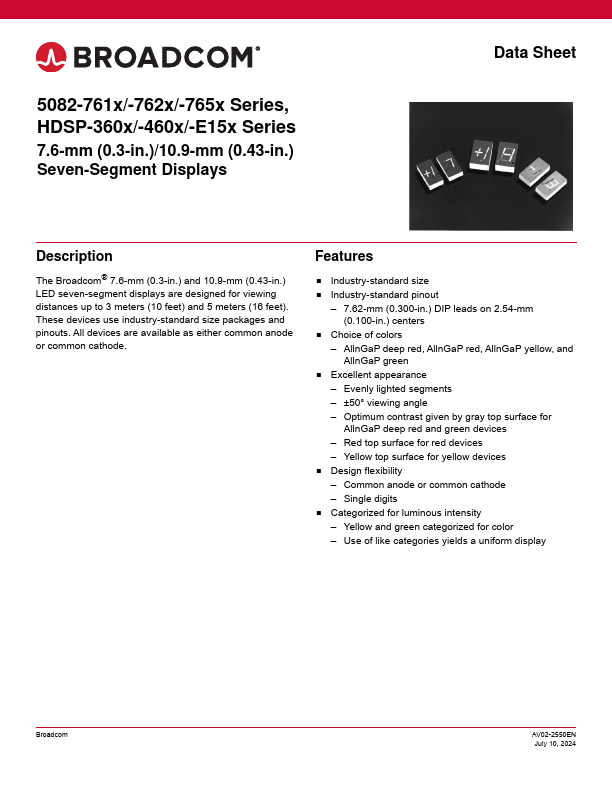

Datasheet preview – HDSP-4601

Datasheet Details

Part number HDSP-4601
Manufacturer Broadcom
File Size 1.02 MB
Description Seven-Segment Displays
Datasheet download datasheet HDSP-4601 Datasheet

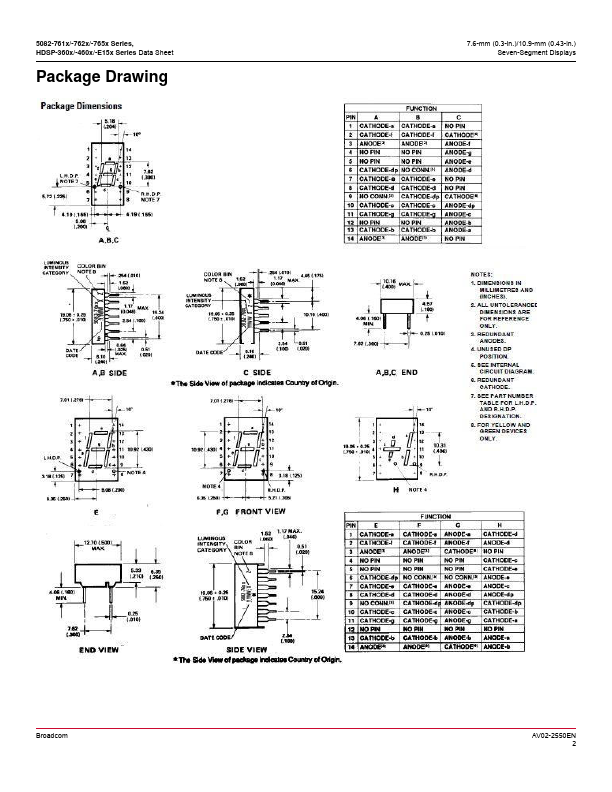

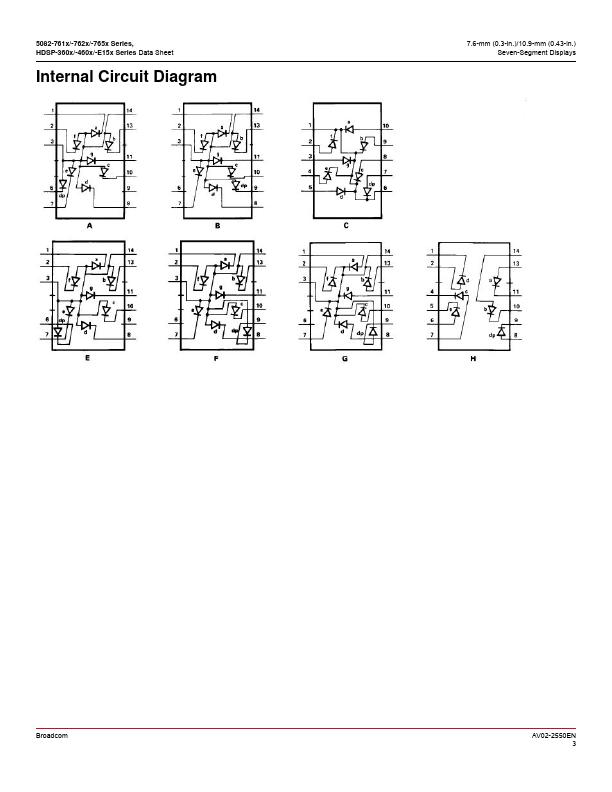

Additional preview pages of the HDSP-4601 datasheet.

📁 Similar Datasheet

  • HDSP-4601 - 7-Segment Displays (Agilent)
  • HDSP-4600 - 7-Segment Displays (Agilent)
  • HDSP-4603 - 7-Segment Displays (Agilent)
  • HDSP-4606 - 7-Segment Displays (Agilent)
  • HDSP-4030 - (HDSP-xxxx) 7-Segment Displays (Hewlett-Packard)
  • HDSP-4130 - (HDSP-xxxx) 7-Segment Displays (Hewlett-Packard)
  • HDSP-4200 - (HDSP-xxxx) 7-Segment Displays (Hewlett-Packard)
  • HDSP-4201 - 20mm (0.8 inch) Seven Segment Displays (Avago)
  • HDSP-4201 - 7-Segment Displays (HP)
  • HDSP-4203 - 20mm (0.8 inch) Seven Segment Displays (Avago)
Other Datasheets by Broadcom

Full PDF Text Transcription

Click to expand full text
5082-761x/-762x/-765x Series, HDSP-360x/-460x/-E15x Series 7.6-mm (0.3-in.)/10.9-mm (0.43-in.) Seven-Segment Displays Data Sheet Description The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet). These devices use industry-standard size packages and pinouts. All devices are available as either common anode or common cathode. Features  Industry-standard size  Industry-standard pinout – 7.62-mm (0.300-in.) DIP leads on 2.54-mm (0.100-in.
