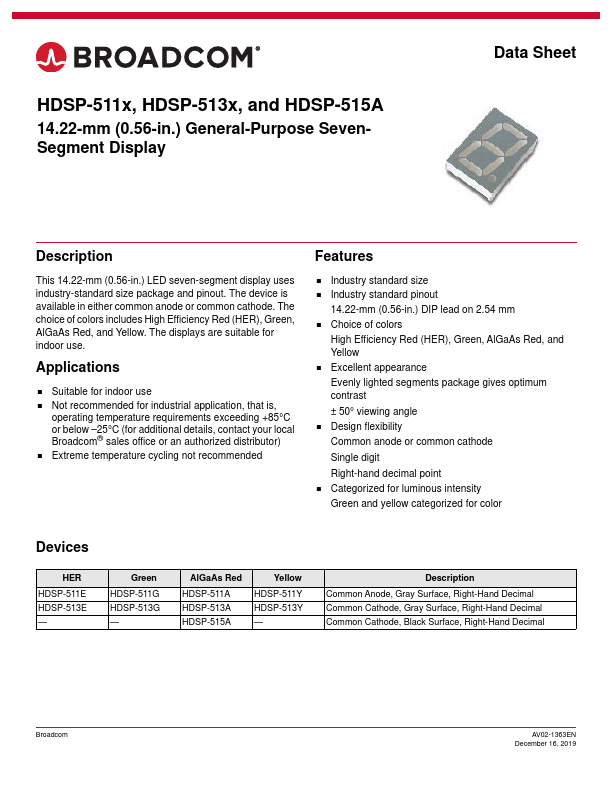

Description This 14.22-mm (0.56-in.) LED seven-segment display uses industry-standard size package and pinout. The device is available in either mon anode or mon cathode. The choice of colors includes High Efficiency Red (HER), Green, Al Ga As Red, and Yellow. The displays are suitable for indoor use. Applications - Suitable for indoor use - Not remended for industrial application, that is, operating temperature requirements exceeding +85°C or below - 25°C (for additional details, contact your local Broad® sales office or an authorized distributor) - Extreme temperature cycling not remended Features - Industry standard size - Industry standard pinout 14.22-mm (0.56-in.) DIP lead on 2.54 mm - Choice of colors High Efficiency Red (HER), Green, Al Ga As Red, and Yellow - Excellent appearance Evenly lighted segments package gives optimum contrast ± 50° viewing angle - Design flexibility mon anode or mon cathode Single digit Right-hand decimal point - Categorized for luminous intensity Green and yellow categorized for color Devices HER HDSP-511E HDSP-513E - Green HDSP-511G HDSP-513G - Al Ga As Red HDSP-511A HDSP-513A HDSP-515A Yellow HDSP-511Y HDSP-513Y - Description mon Anode, Gray Surface, Right-Hand Decimal mon Cathode, Gray Surface, Right-Hand Decimal mon Cathode, Black Surface, Right-Hand Decimal Broad AV02-1363EN December 16, 2019 HDSP-511x, HDSP-513x, and HDSP-515A Data Sheet Part Numbering System 14.22-mm (0.56-in.) General-Purpose Seven-Segment Display 5 0 8 2 - x1 x2 x3 x4 - x5 x6 x7 x8 x9 - x1 x2 x3 x4 - x5 x6 x7 x8 x9 Placeholder Description Option Setting Notes x1 Package a x2 x3 Device Specific Configuration a x4 Device Configuration/Color...
