HDSP-U103 - Ultra Mini Seven-Segment Displays

Product Overview

Broadcom

Part number	HDSP-U103
Manufacturer	Broadcom
File Size	766.29 KB
Description	Ultra Mini Seven-Segment Displays
Datasheet	HDSP-U103 Datasheet
Note	This datasheet PDF includes multiple part numbers: HDSP-U103, HDSP-U101. Please refer to the document for exact specifications by model.

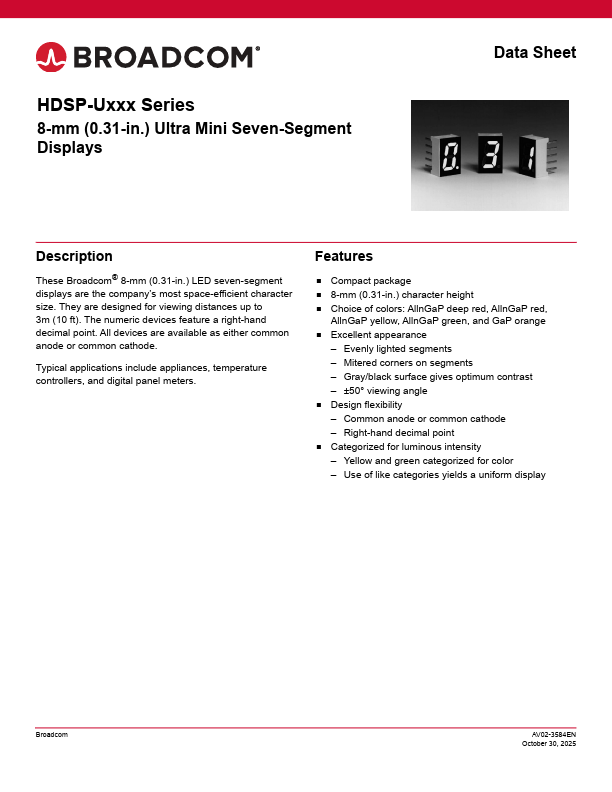

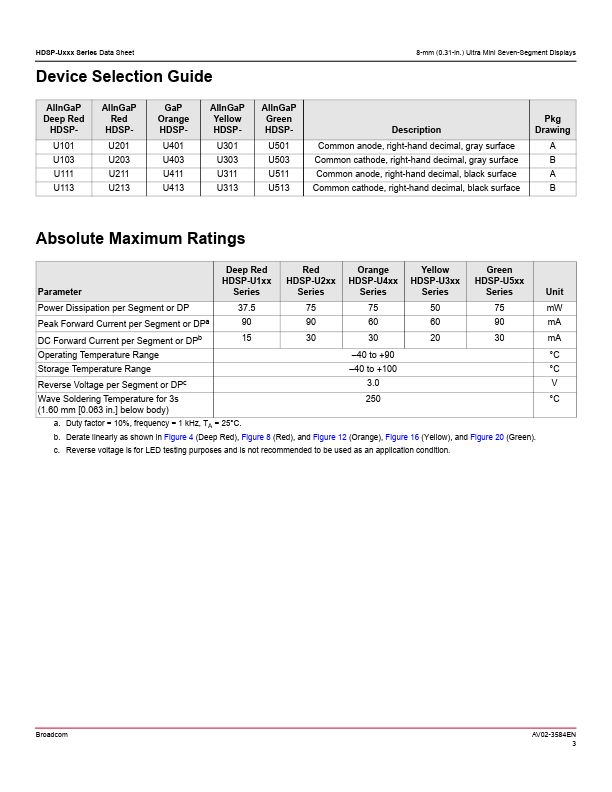

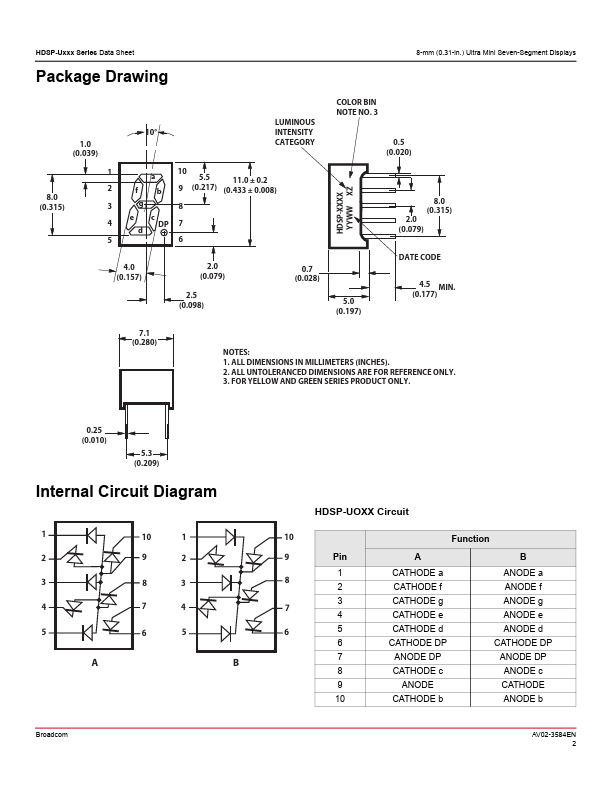

Additional preview pages of the HDSP-U103 datasheet.

These Broadcom® 8-mm (0.31-in.) LED seven-segment displays are the company’s most space-efficient character size.

They are designed for viewing distances up to 3m (10 ft).

The numeric devices feature a right-hand decimal point.

Compact package.
8-mm (0.31-in. ) character height.
Choice of colors: AllnGaP deep red, AllnGaP red, AllnGaP yellow, AllnGaP green, and GaP orange.
Excellent appearance.
Evenly lighted segments.
Mitered corners on segments.
Gray/black surface gives optimum contrast.
±50° viewing angle.
Design flexibility.
Common anode or common cathode.
Right-hand decimal point.
Categorized for luminous intensity.
Yellow.
