HDSP-U201 - Ultra Mini Seven-Segment Displays

This page provides the datasheet information for the HDSP-U201, a member of the HDSP-U101 Ultra Mini Seven-Segment Displays family.

Datasheet Summary

Description

These Broadcom® 8-mm (0.31-in.) LED seven-segment displays are the company’s most space-efficient character size.

They are designed for viewing distances up to 3m (10 ft).

The numeric devices feature a right-hand decimal point.

Features

  • Compact package.
  • 8-mm (0.31-in. ) character height.
  • Choice of colors: AllnGaP deep red, AllnGaP red, AllnGaP yellow, AllnGaP green, and GaP orange.
  • Excellent appearance.
  • Evenly lighted segments.
  • Mitered corners on segments.
  • Gray/black surface gives optimum contrast.
  • ±50° viewing angle.
  • Design flexibility.
  • Common anode or common cathode.
  • Right-hand decimal point.
  • Categorized for luminous intensity.
  • Yellow.

📥 Download Datasheet

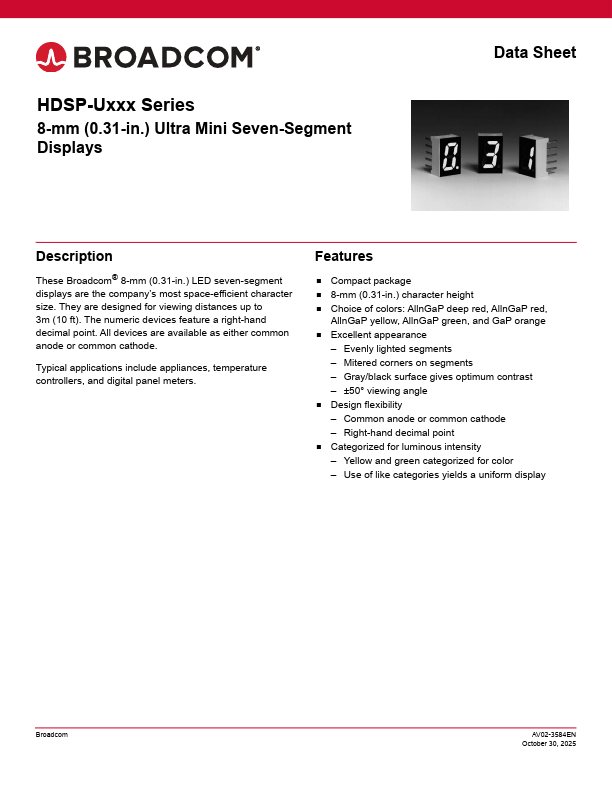

Datasheet preview – HDSP-U201

Datasheet Details

Part number HDSP-U201
Manufacturer Broadcom
File Size 766.29 KB
Description Ultra Mini Seven-Segment Displays
Datasheet download datasheet HDSP-U201 Datasheet

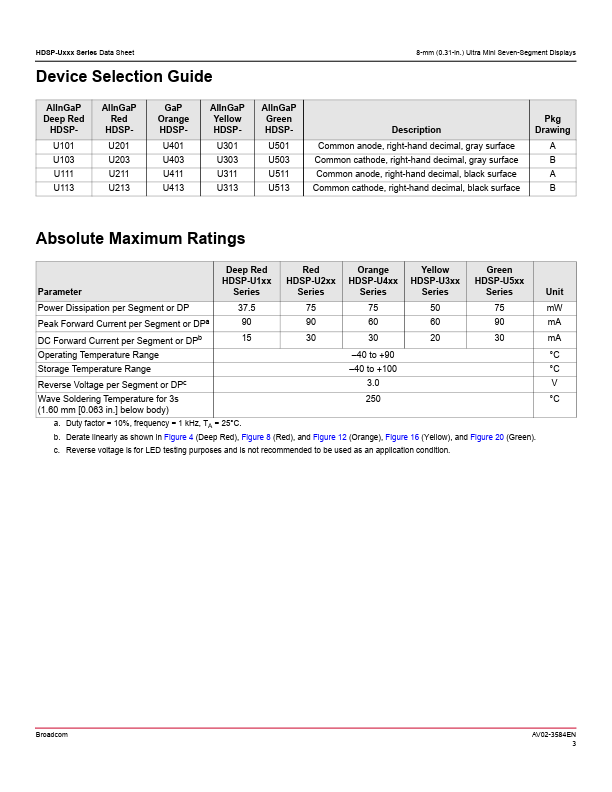

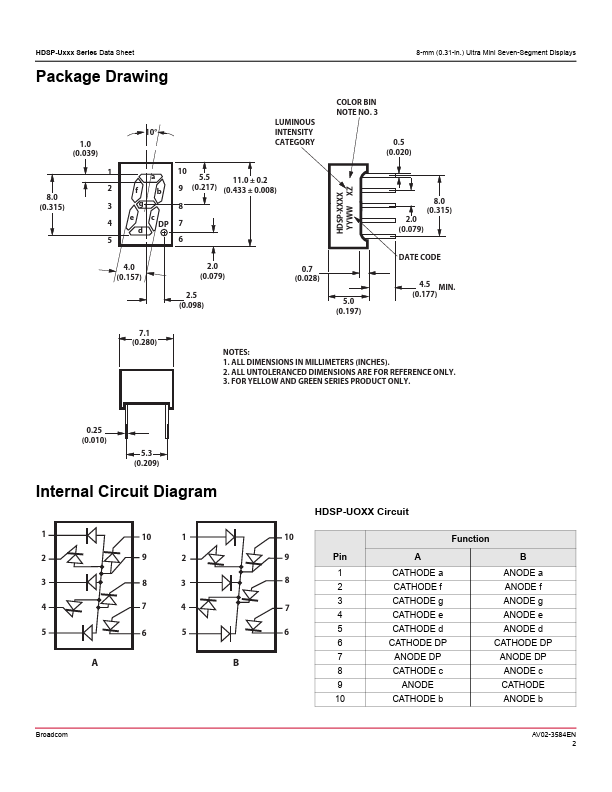

Additional preview pages of the HDSP-U201 datasheet.

📁 Similar Datasheet

  • HDSP-U201 - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (Agilent)
  • HDSP-U201 - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (AVAGO)
  • HDSP-U203 - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (Agilent)
  • HDSP-U203 - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (AVAGO)
  • HDSP-U211 - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (AVAGO)
  • HDSP-U211 - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (Agilent)
  • HDSP-U213 - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (AVAGO)
  • HDSP-U213 - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (Agilent)
  • HDSP-U2xx - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (Agilent)
  • HDSP-U2xx - 8 mm (0.31 inch) Ultra Mini Seven Segment Displays (AVAGO)
Other Datasheets by Broadcom
  • HDSP-U203 - Ultra Mini Seven-Segment Displays
  • HDSP-U211 - Ultra Mini Seven-Segment Displays
  • HDSP-U213 - Ultra Mini Seven-Segment Displays
  • HDSP-U101 - Ultra Mini Seven-Segment Displays
  • HDSP-U103 - Ultra Mini Seven-Segment Displays
  • HDSP-U111 - Ultra Mini Seven-Segment Displays
  • HDSP-U113 - Ultra Mini Seven-Segment Displays
  • HDSP-U301 - Ultra Mini Seven-Segment Displays

Full PDF Text Transcription

Click to expand full text
HDSP-Uxxx Series 8-mm (0.31-in.) Ultra Mini Seven-Segment Displays Data Sheet Description These Broadcom® 8-mm (0.31-in.) LED seven-segment displays are the company’s most space-efficient character size. They are designed for viewing distances up to 3m (10 ft). The numeric devices feature a right-hand decimal point. All devices are available as either common anode or common cathode. Typical applications include appliances, temperature controllers, and digital panel meters. Features  Compact package  8-mm (0.31-in.
