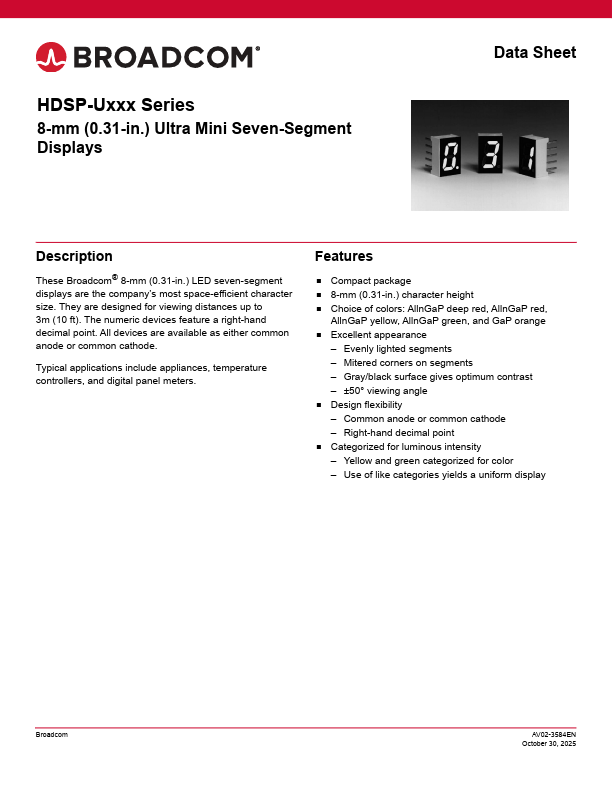

HDSP-U313 Overview
Key Specifications
Package: DIP
Mount Type: Through Hole
Pins: 10
Height: 10.9982 mm
Description
These Broadcom® 8-mm (0.31-in.) LED seven-segment displays are the company’s most space-efficient character size. They are designed for viewing distances up to 3m (10 ft).
Key Features
- Compact package
- 8-mm (0.31-in.) character height
- Choice of colors: AllnGaP deep red, AllnGaP red, AllnGaP yellow, AllnGaP green, and GaP orange
- Design flexibility – Common anode or common cathode – Right-hand decimal point

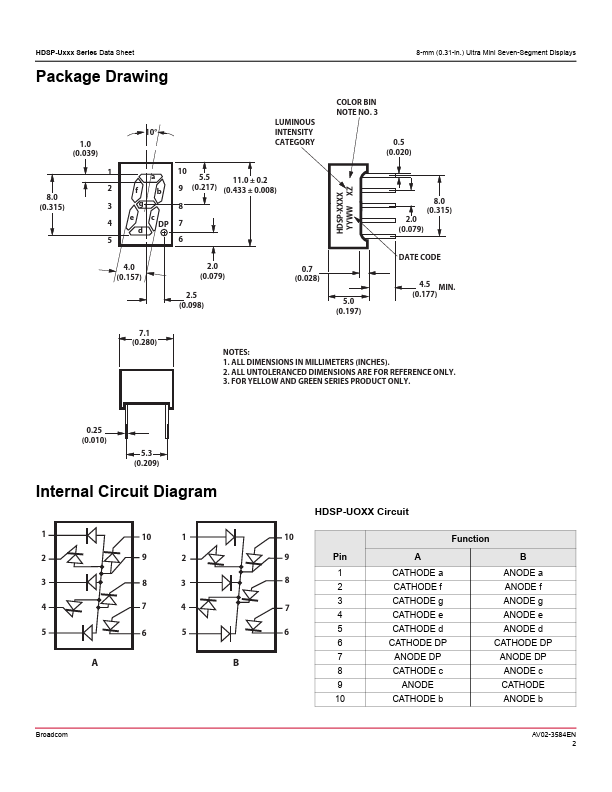

- ALL DIMENSIONS IN MILLIMETERS (INCHES)
