Datasheet Details
| Part number | HDSP-U401 |
|---|---|
| Manufacturer | Broadcom |
| File Size | 766.29 KB |
| Description | Ultra Mini Seven-Segment Displays |
| Datasheet |

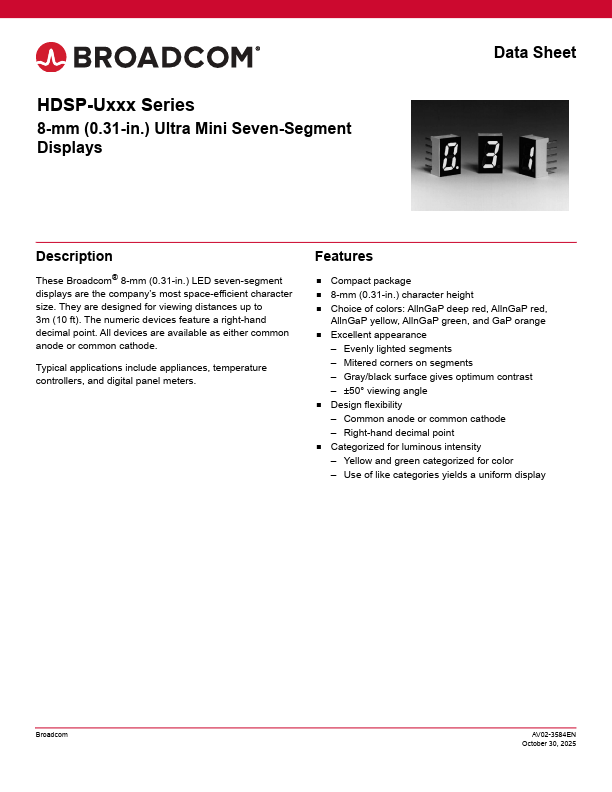

 HDSP-U401 Datasheet
|
|
|
General Description
These Broadcom® 8-mm (0.31-in.) LED seven-segment displays are the company’s most space-efficient character size.
They are designed for viewing distances up to 3m (10 ft).
The numeric devices feature a right-hand decimal point.
Key Features
- Compact package.
- 8-mm (0.31-in. ) character height.
- Choice of colors: AllnGaP deep red, AllnGaP red, AllnGaP yellow, AllnGaP green, and GaP orange.
- Excellent appearance.
- Evenly lighted segments.
- Mitered corners on segments.
- Gray/black surface gives optimum contrast.
- ±50° viewing angle.
- Design flexibility.
- Common anode or common cathode.
- Right-hand decimal point.
- Categorized for luminous intensity.
- Yellow.
