Broadcom HDSP-U511
The numeric devices feature a right-hand decimal point.| Part No. | HDSP-U511 |
|---|---|
| Datasheet | HDSP-U511 Download |
| Manufacturer |  Broadcom |
| Description | Ultra Mini Seven-Segment Displays |
| Buy | Stock & Price |

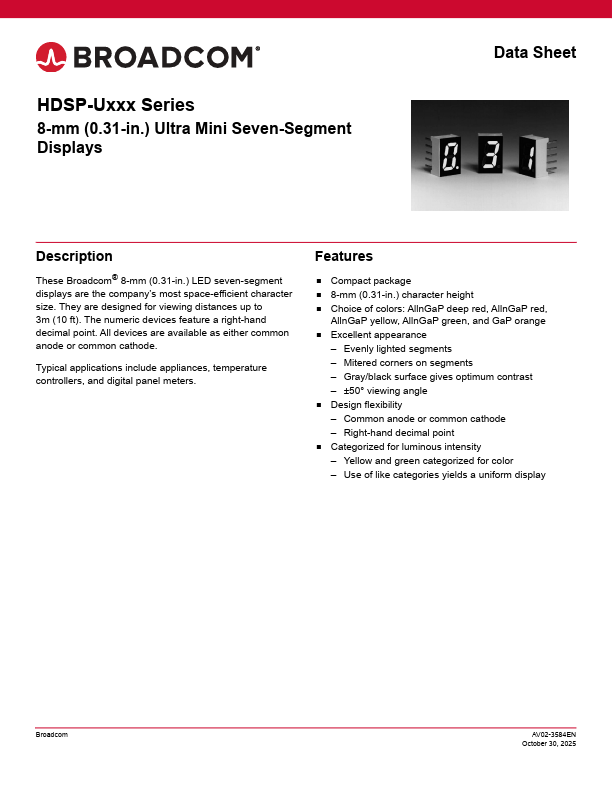

DESCRIPTION

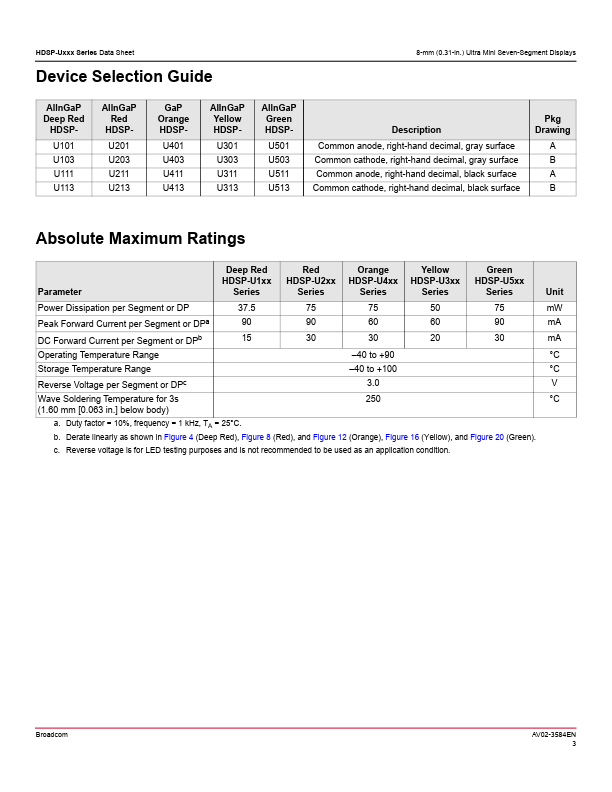

These Broadcom® 8-mm (0.31-in.) LED seven-segment displays are the company’s most space-efficient character size. They are designed for viewing distances up to 3m (10 ft). All devices are available as either common anode or common cathode. Typical applications include appliances, temperature controllers, and digital panel meters.FEATURES
● Compact package● 8-mm (0.31-in.) character height
● Choice of colors: AllnGaP deep red, AllnGaP red, AllnGaP yellow, AllnGaP green, and GaP orange
● Excellent appearance – Evenly lighted segments – Mitered corners on segments – Gray/black surface gives optimum contrast – ±50° viewing angle
● Design flexibility – Common anode or common cathode – Right-hand decimal point
● Categorized for luminous intensity – Yellow and green categorized for color – Use of like categories yields a uniform display Broadcom AV02-3584EN October 30, 2025 HDSP-Uxxx Series Data Sheet 8-mm (0.31-in.) Ultra Mini Seven-Segment Displays Package Drawing 1.0 (0.039) 1 2 8.0 (0.315) 3 4 5 LUMINOUS 10° INTENSITY CATEGORY a fb 10 5.5 11.0 ± 0.2 9 (0.217) (0.433 ± 0.008) g 8 ec DP 7 d 6 4.0 (0.157) 2.0 (0.079) 2.5 (0.
