HFBR-1402Z Datasheet Miniature Link Fiber Optic Components

Manufacturer: Broadcom

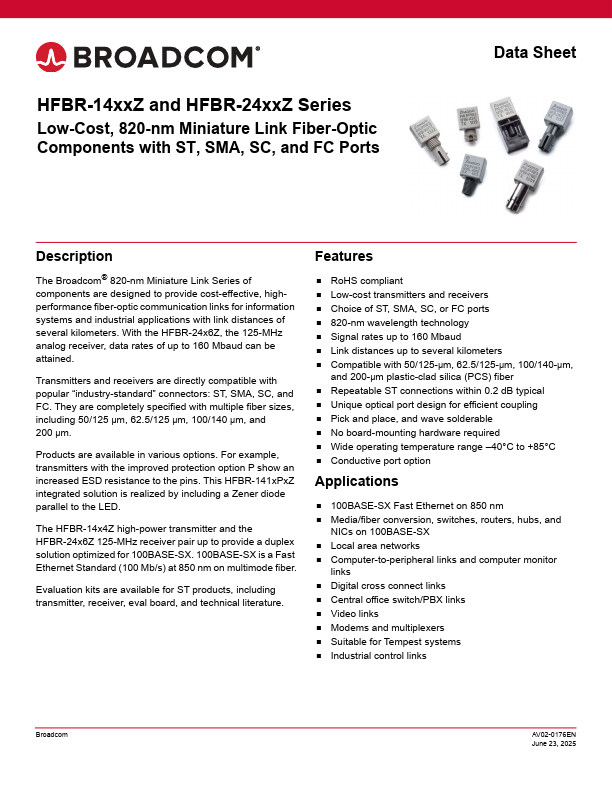

Overview: HFBR-14xxZ and HFBR-24xxZ Series Low-Cost, 820 nm Miniature Link Fiber-Optic ponents with ST, SMA, SC, and FC Ports Data.

General Description

The 820 nm Miniature Link Series of ponents is designed to provide cost-effective, high-performance fiber-optic munication links for information systems and industrial applications with link distances of several kilometers.

With the HFBR-24x6Z, the 125 MHz analog receiver, data rates of up to 160 MBaud can be attained.

Transmitters and receivers are directly patible with popular “industry-standard” connectors: ST, SMA, SC, and FC.

Key Features

  • RoHS compliant.
  • Low-cost transmitters and receivers.
  • Choice of ST, SMA, SC, or FC ports.
  • 820 nm wavelength technology.
  • Signal rates up to 160 MBaud.
  • Link distances up to several kilometers.
  • Compatible with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm Plastic-Clad Silica (PCS) Fiber.
  • Repeatable ST connections within 0.2 dB typical.
  • Unique optical port design for efficient coupling.
  • Pick and place, and wave solderable.
  • No board-mounting har.
