Broadcom HFBR-1414PTZ
the HFBR-24x6Z, the 125-MHz analog receiver, data rates of up to 160 Mbaud can be attained. They are completely specified with multiple fiber sizes, including 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm. For example, transmitters with the improved protection option P show an increased ESD resistance to the pins.| Part No. | HFBR-1414PTZ |
|---|---|
| Datasheet | HFBR-1414PTZ Download |
| Manufacturer |  Broadcom |
| Description | Miniature Link Fiber Optic Components |
| Buy | Stock & Price |

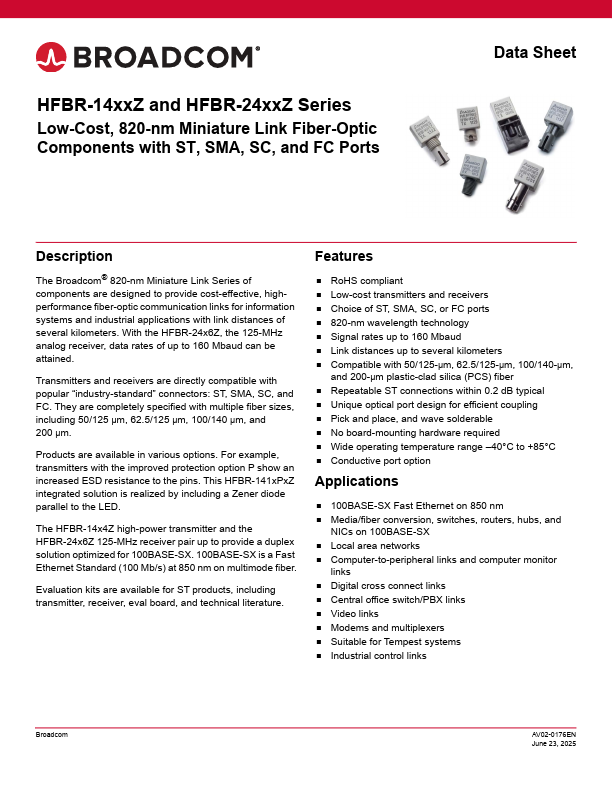

DESCRIPTION
The Broadcom® 820-nm Miniature Link Series of components are designed to provide cost-effective, highperformance fiber-optic communication links for information systems and industrial applications with link distances of several kilometers. With Transmitters and receivers are directly compatible with popular “industry-standard” connectors: ST, SMA, SC, and FC. Products are available in various options. This HFBR-141xPxZ integrated solution is realized by including a Zener diode parallel to the LED. The HFBR-14x4Z high-power transmitter and the HFBR-24x6Z 125-MHz receiver pair up to provide a duplex solution optimized for 100BASE-SX. 100BASE-SX is a Fast Ethernet Standard (100 Mb/s) at 850 nm on multimode fiber. Evaluation kits are available for ST products, including transmitter, receiver, eval board, and technical literature.FEATURES
● RoHS compliant● Low-cost transmitters and receivers
● Choice of ST, SMA, SC, or FC ports
● 820-nm wavelength technology
● Signal rates up...
