HFBR-1424Z - Miniature Link Fiber Optic Components

This page provides the datasheet information for the HFBR-1424Z, a member of the HFBR-1402Z Miniature Link Fiber Optic Components family.

Datasheet Summary

Description

The 820 nm Miniature Link Series of components is designed to provide cost-effective, high-performance fiber-optic communication links for information systems and industrial applications with link distances of several kilometers.

Features

  • RoHS compliant.
  • Low-cost transmitters and receivers.
  • Choice of ST, SMA, SC, or FC ports.
  • 820 nm wavelength technology.
  • Signal rates up to 160 MBaud.
  • Link distances up to several kilometers.
  • Compatible with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm Plastic-Clad Silica (PCS) Fiber.
  • Repeatable ST connections within 0.2 dB typical.
  • Unique optical port design for efficient coupling.
  • Pick and place, and wave solderable.
  • No board-mounting har.

📥 Download Datasheet

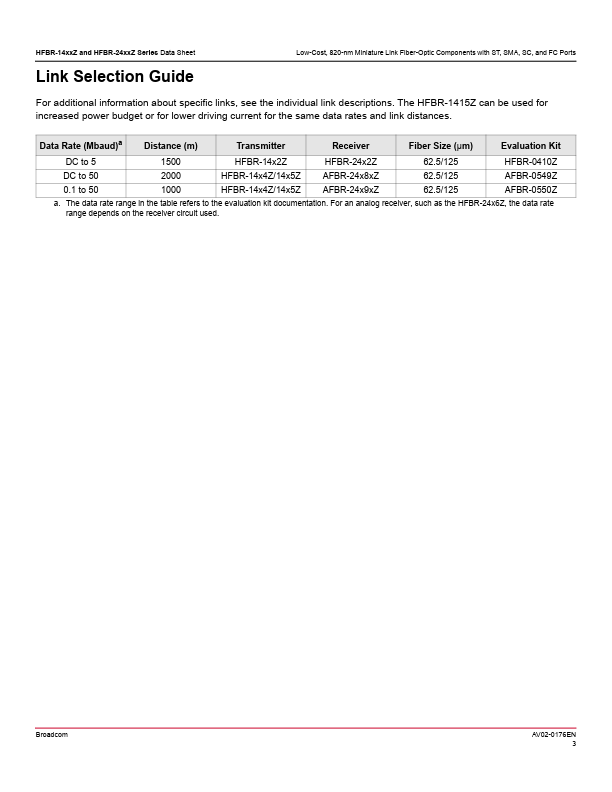

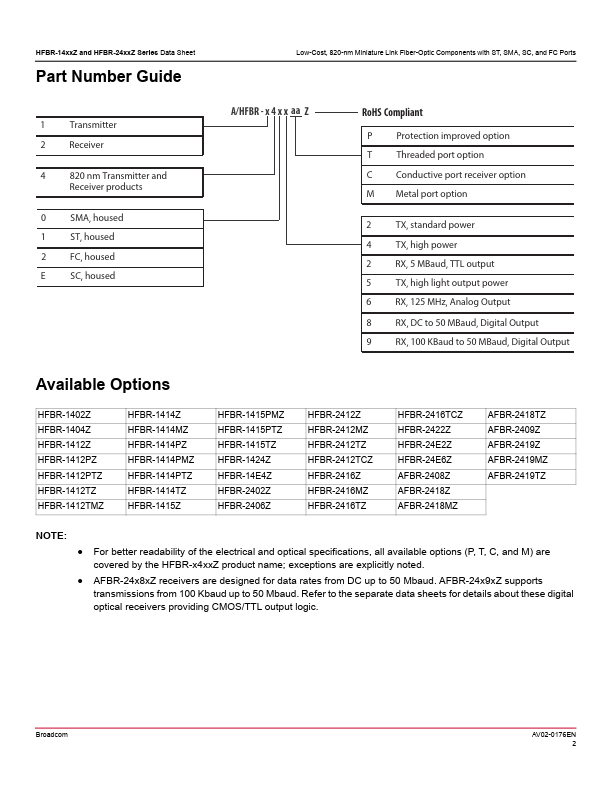

Datasheet preview – HFBR-1424Z
