Datasheet Details
| Part number | HFBR-1523Z |
|---|---|
| Manufacturer | Broadcom |
| File Size | 783.19 KB |
| Description | Versatile Link Fiber-Optic Connection |
| Datasheet |

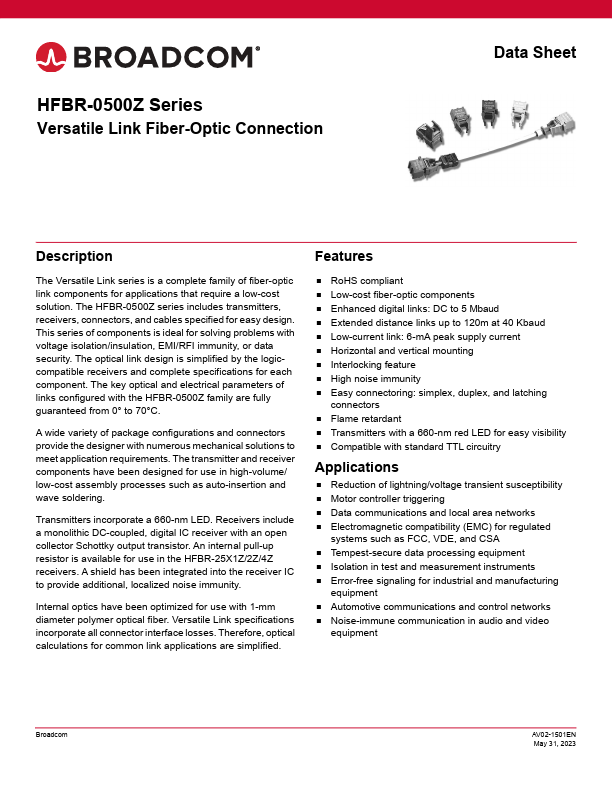

 HFBR-1523Z Datasheet
|
|
|
General Description
The Versatile Link series is a complete family of fiber-optic link components for applications that require a low-cost solution.
The HFBR-0500Z series includes transmitters, receivers, connectors, and cables specified for easy design.
Key Features
- RoHS compliant.
- Low-cost fiber-optic components.
- Enhanced digital links: DC to 5 Mbaud.
- Extended distance links up to 120m at 40 Kbaud.
- Low-current link: 6-mA peak supply current.
- Horizontal and vertical mounting.
- Interlocking feature.
- High noise immunity.
- Easy connectoring: simplex, duplex, and latching connectors.
- Flame retardant.
- Transmitters with a 660-nm red LED for easy visibility.
- Compatible with standard TTL circuitry Applicati.
