HFBR-2422Z - Miniature Link Fiber Optic Components
Broadcom
Download the HFBR-2422Z datasheet PDF.
This datasheet also covers the HFBR-1402Z variant, as both devices belong to the same miniature link fiber optic components family and are provided as variant models within a single manufacturer datasheet.
General Description
The 820 nm Miniature Link Series of components is designed to provide cost-effective, high-performance fiber-optic communication links for information systems and industrial applications with link distances of several kilometers.
Key Features
RoHS compliant.
Low-cost transmitters and receivers.
Choice of ST, SMA, SC, or FC ports.
820 nm wavelength technology.
Signal rates up to 160 MBaud.
Link distances up to several kilometers.
Compatible with 50/125 µm, 62.5/125 µm, 100/140 µm,
and 200 µm Plastic-Clad Silica (PCS) Fiber.
Repeatable ST connections within 0.2 dB typical.
Unique optical port design for efficient coupling.
Full PDF Text Transcription for HFBR-2422Z (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
HFBR-2422Z. For precise diagrams, and layout, please refer to the original PDF.

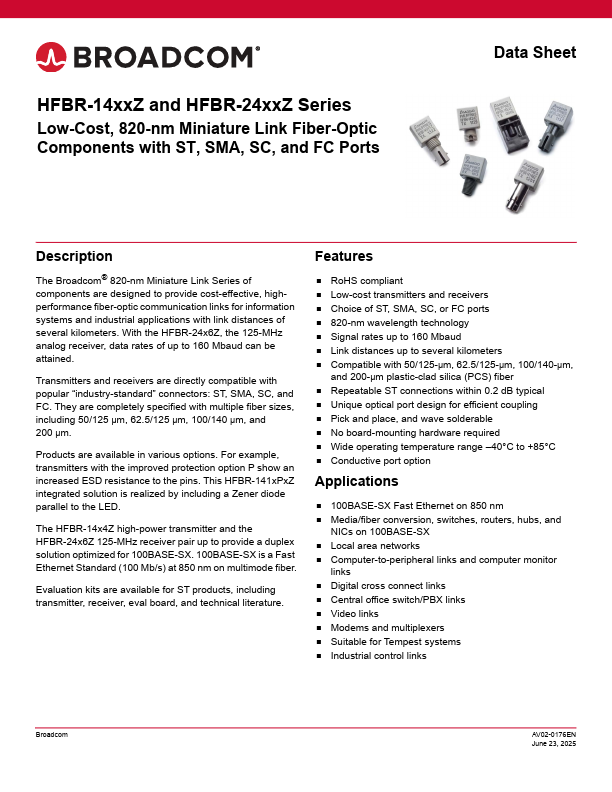

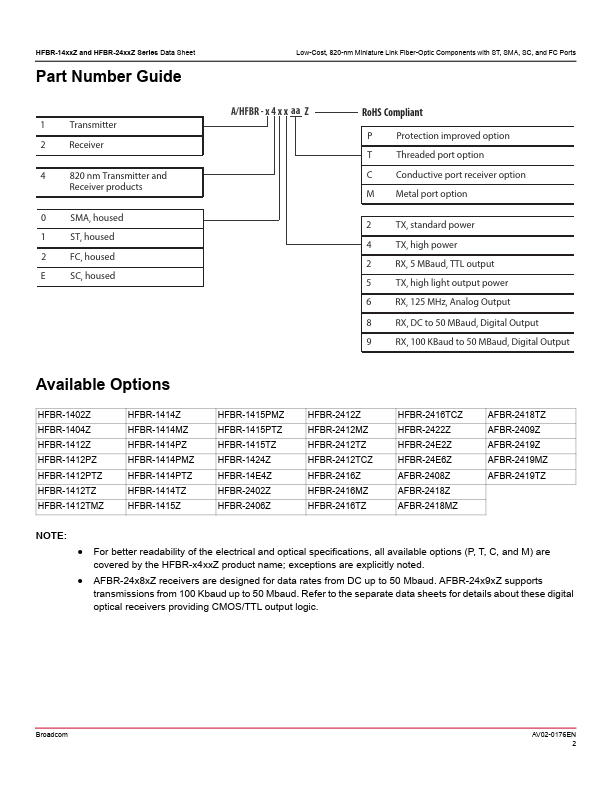

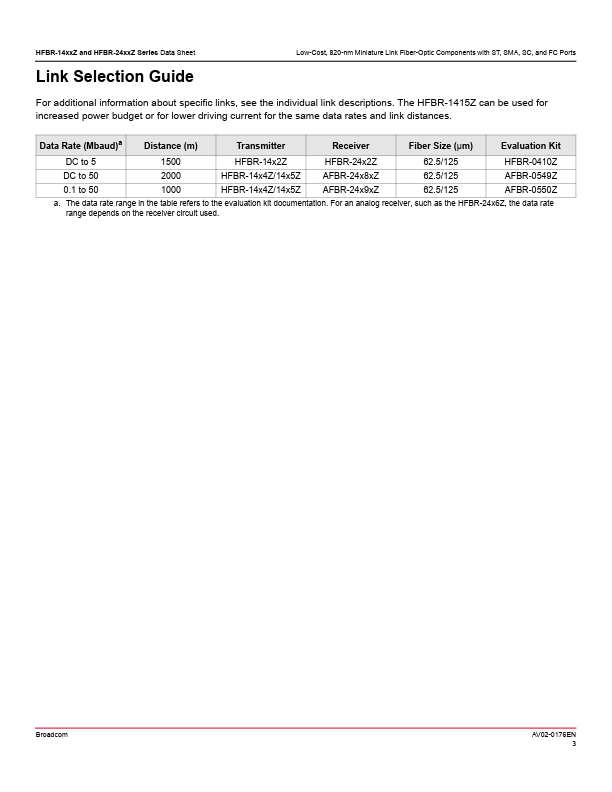

HFBR-14xxZ and HFBR-24xxZ Series Low-Cost, 820 nm Miniature Link Fiber-Optic Components with ST, SMA, SC, and FC Ports Data Sheet Description The 820 nm Miniature Link Se...
