HFBR-2523Z - Versatile Link Fiber-Optic Connection

Download the HFBR-2523Z datasheet PDF. This datasheet also covers the HFBR-1523Z variant, as both devices belong to the same versatile link fiber-optic connection family and are provided as variant models within a single manufacturer datasheet.

General Description

The Versatile Link series is a complete family of fiber-optic link components for applications that require a low-cost solution.

The HFBR-0500Z series includes transmitters, receivers, connectors, and cables specified for easy design.

Key Features

  • RoHS compliant.
  • Low-cost fiber-optic components.
  • Enhanced digital links: DC to 5 Mbaud.
  • Extended distance links up to 120m at 40 Kbaud.
  • Low-current link: 6-mA peak supply current.
  • Horizontal and vertical mounting.
  • Interlocking feature.
  • High noise immunity.
  • Easy connectoring: simplex, duplex, and latching connectors.
  • Flame retardant.
  • Transmitters with a 660-nm red LED for easy visibility.
  • Compatible with standard TTL circuitry Applicati.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HFBR-1523Z-Broadcom.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HFBR-2523Z
Manufacturer Broadcom
File Size 783.19 KB
Description Versatile Link Fiber-Optic Connection
Datasheet download datasheet HFBR-2523Z Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HFBR-2523Z The Versatile Fiber Optic Connection Avago
HFBR-2523 (HFBR-x5xx Series) Versatile Link The Versatile Fiber Optic Connection Agilent
HFBR-2521 (HFBR-x5xx Series) Versatile Link The Versatile Fiber Optic Connection Agilent
HFBR-2521Z The Versatile Fiber Optic Connection Avago
HFBR-2522 (HFBR-x5xx Series) Versatile Link The Versatile Fiber Optic Connection Agilent

Other Datasheets by Broadcom

Part Number Description
HFBR-2521Z Versatile Link Fiber-Optic Connection
HFBR-2522Z Versatile Link Fiber-Optic Connection
HFBR-2524Z Versatile Link Fiber-Optic Connection
HFBR-2402Z Miniature Link Fiber Optic Components
HFBR-2406Z Miniature Link Fiber Optic Components

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

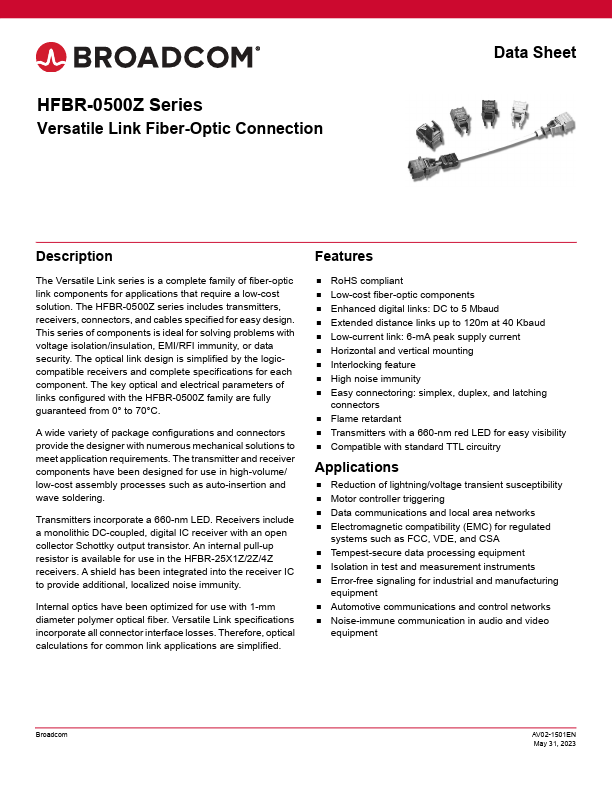

HFBR-0500Z Series Versatile Link Fiber-Optic Connection Data Sheet Description The Versatile Link series is a complete family of fiber-optic link components for applications that require a low-cost solution. The HFBR-0500Z series includes transmitters, receivers, connectors, and cables specified for easy design. This series of components is ideal for solving problems with voltage isolation/insulation, EMI/RFI immunity, or data security. The optical link design is simplified by the logiccompatible receivers and complete specifications for each component. The key optical and electrical parameters of links configured with the HFBR-0500Z family are fully guaranteed from 0° to 70°C.
