HSSR-711E - Power MOSFET Optocoupler

This page provides the datasheet information for the HSSR-711E, a member of the HSSR-7110 Power MOSFET Optocoupler family.

Description

The Broadcom® HSSR-7110, HSSR-7111, HSSR-7112, HSSR-711E, and SMD 5962-9314001, 5962-93140021 are single-channel power MOSFET optocouplers, constructed in eight-pin, hermetic, dual-in-line, ceramic packages.

The devices operate exactly like a solid-state relay.

Features

  • Dual marked with device part number and DLA standard microcircuit drawing (SMD).
  • ac/dc signal and power switching.
  • Compact solid-state bidirectional switch.
  • Manufactured and tested on a MIL-PRF-38534 certified line.
  • QML-38534, Class H and Class E.
  • Hermetically sealed 8-pin, dual-in-line package.
  • Small size and weight.
  • Performance guaranteed over.
  • 55°C to +125°C.
  • Connection A 0.8A, 1.0Ω.
  • Connection B 1.6A, 0.25Ω.
  • 1500 Vdc withstand t.

📥 Download Datasheet

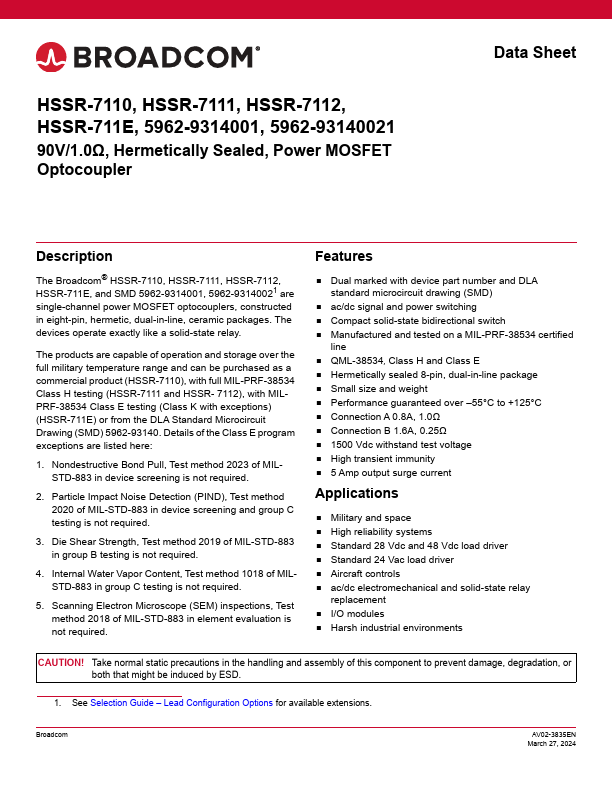

Datasheet preview – HSSR-711E

Datasheet Details

Part number HSSR-711E
Manufacturer Broadcom
File Size 891.11 KB
Description Power MOSFET Optocoupler
Datasheet download datasheet HSSR-711E Datasheet

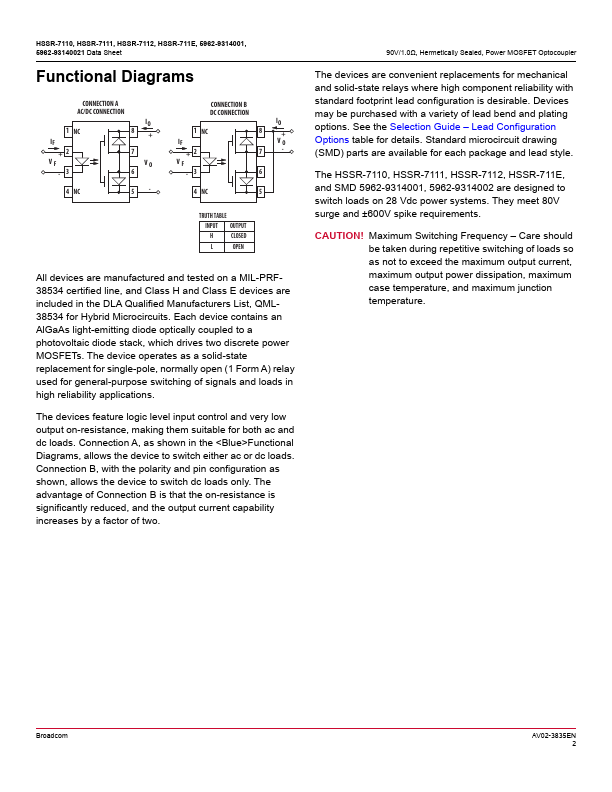

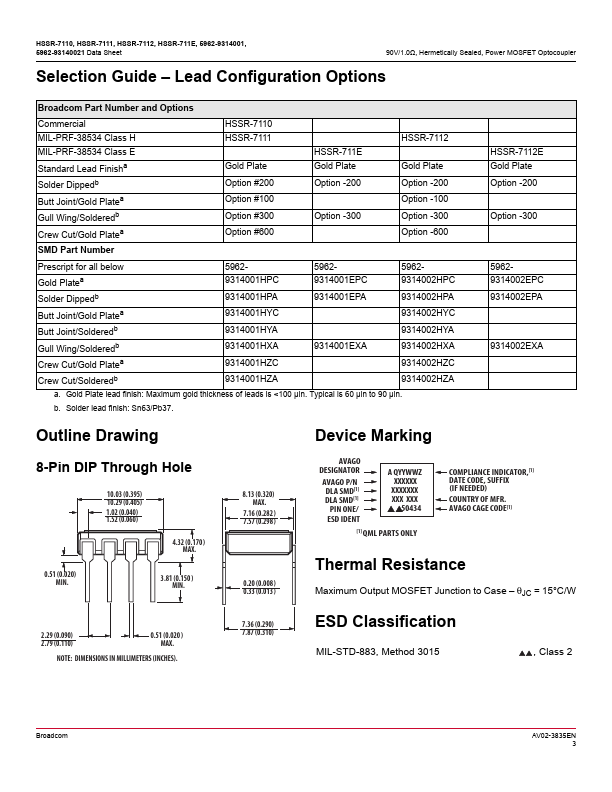

Additional preview pages of the HSSR-711E datasheet.
