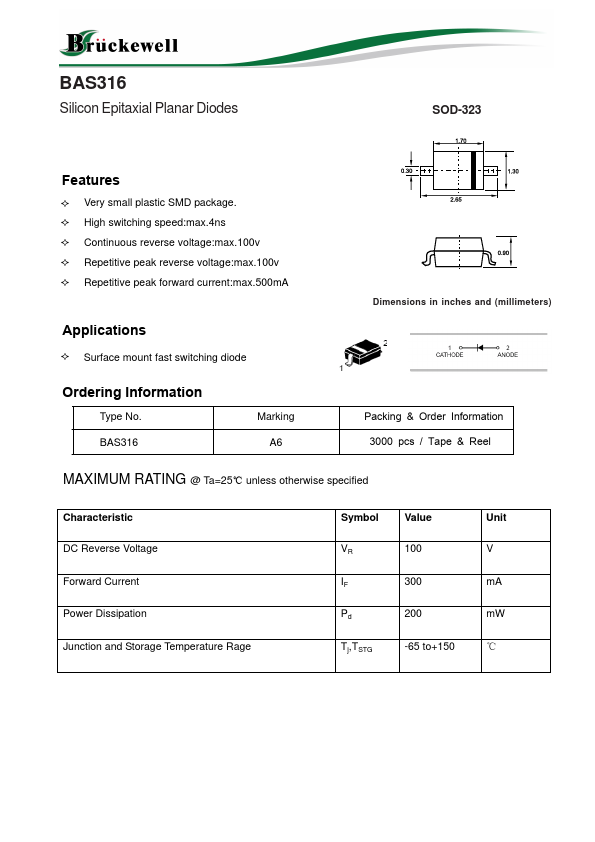

Silicon Epitaxial Planar Diodes SOD-323 Features — Very small plastic SMD package. — High switching speed:max.4ns — Continuous reverse voltage:max.100v — Repetitive peak reverse voltage:max.100v — Repetitive peak forward current:max.500m A Applications — Surface mount fast switching diode Dimensions in inches and (millimeters) Ordering Information Type No. BAS316 Marking A6 Packing & Order Information 3000 pcs / Tape & Reel MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic DC Reverse Voltage Forward Current Power Dissipation Junction and Storage Temperature Rage Symbol VR IF Pd Tj,TSTG Value 100 300 200 -65 to+150 Unit V m A m W ℃ Silicon Epitaxial Planar Diodes ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Characteristic Reverse Breakdown Voltage Forward Voltage Symbol V(BR)R VF Reverse Current Capacitance between terminals CT Reverse Recovery Time trr Min 100 0.62 - Max Unit - V 0.715 V μA 1.5 p F 4.0...
