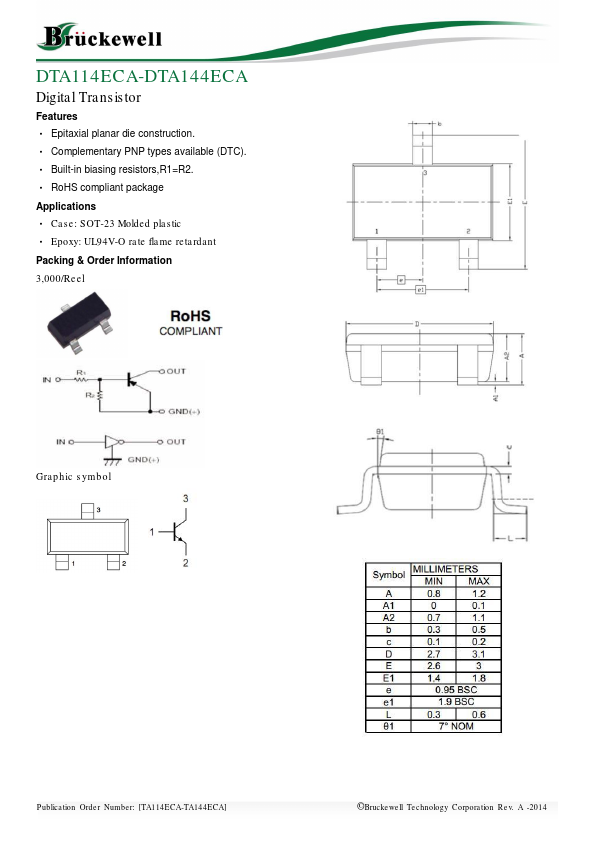

Datasheet Summary
DTA114ECA-DTA144ECA
Digital Transistor
Features
- Epitaxial planar die construction.
- plementary PNP types available (DTC).
- Built-in biasing resistors,R1=R2.
- RoHS pliant package Applications
- Case: SOT-23 Molded plastic
- Epoxy: UL94V-O rate flame retardant Packing & Order Information 3,000/Reel
Graphic symbol
Publication Order Number: [TA114ECA-TA144ECA]
© Bruckewell Technology Corporation Rev. A -2014
DTA114ECA-DTA144ECA
Digital Transistor
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Maximum Ratings (Tc=25°C unless otherwise noted)
Symbol
Parameter
Supply Voltage
Value -50
TA114ECA
TA114ECA
+10 to -40
TA124ECA VIN
TA143ECA
TA124ECA TA143ECA
+10 to -40...
