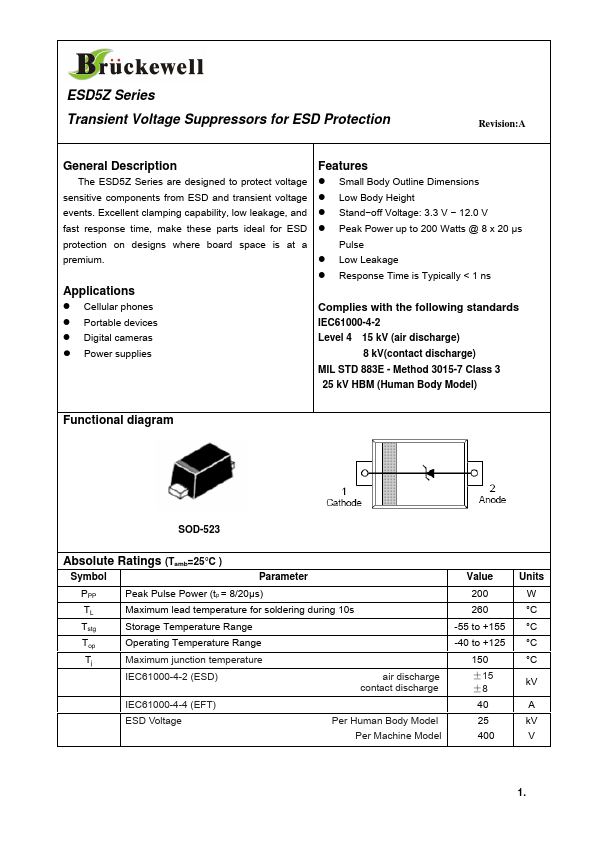

ESD5Z3V3
Description
The ESD5Z Series are designed to protect voltage sensitive ponents from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.
Applications z Cellular phones z Portable devices z Digital cameras z Power supplies
Features z Small Body Outline Dimensions z Low Body Height z Stand- off Voltage: 3.3 V
- 12.0 V z Peak Power up to 200 Watts @ 8 x 20 µs
Pulse z Low Leakage z Response Time is Typically < 1 ns plies with the following standards IEC61000-4-2 Level 4 15 k V (air discharge)
8 k V(contact discharge) MIL STD 883E
- Method 3015-7 Class 3 25 k V HBM (Human Body Model)
Functional diagram
SOD-523
Absolute Ratings (Tamb=25°C )
Symbol
Parameter
Peak Pulse Power (tp = 8/20μs)
Maximum lead temperature for soldering during 10s
Tstg
Storage Temperature Range
Top
Operating Temperature Range
Tj
Maximum junction temperature
IEC61000...
