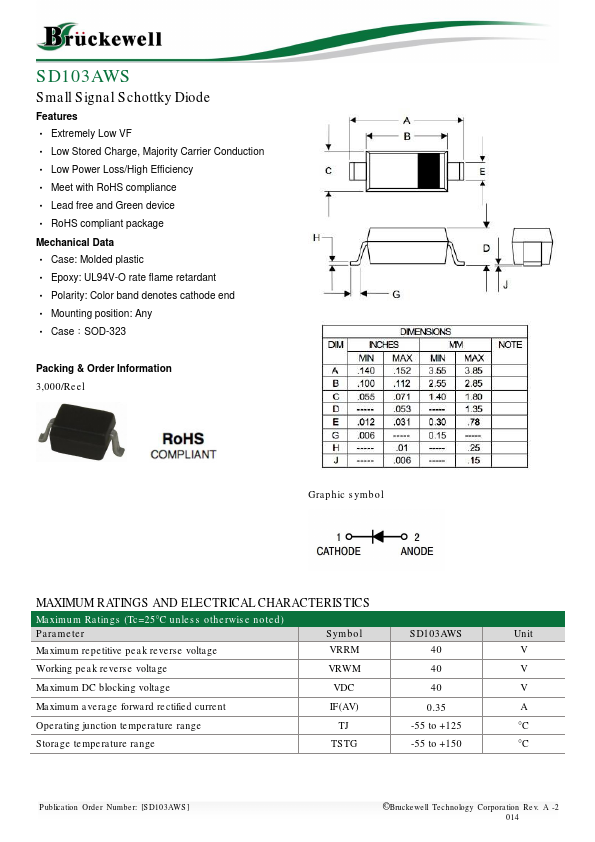

SD103AWS
SD103AWS is Small Signal Schottky Diode manufactured by Bruckewell Technology.
Small Signal Schottky Diode
Features
- Extremely Low VF
- Low Stored Charge, Majority Carrier Conduction
- Low Power Loss/High Efficiency
- Meet with Ro HS pliance
- Lead free and Green device
- Ro HS pliant package Mechanical Data
- Case: Molded plastic
- Epoxy: UL94V-O rate flame retardant
- Polarity: Color band denotes cathode end
- Mounting position: Any
- Case：SOD-323
Packing & Order Information 3,000/Reel
Graphic symbol

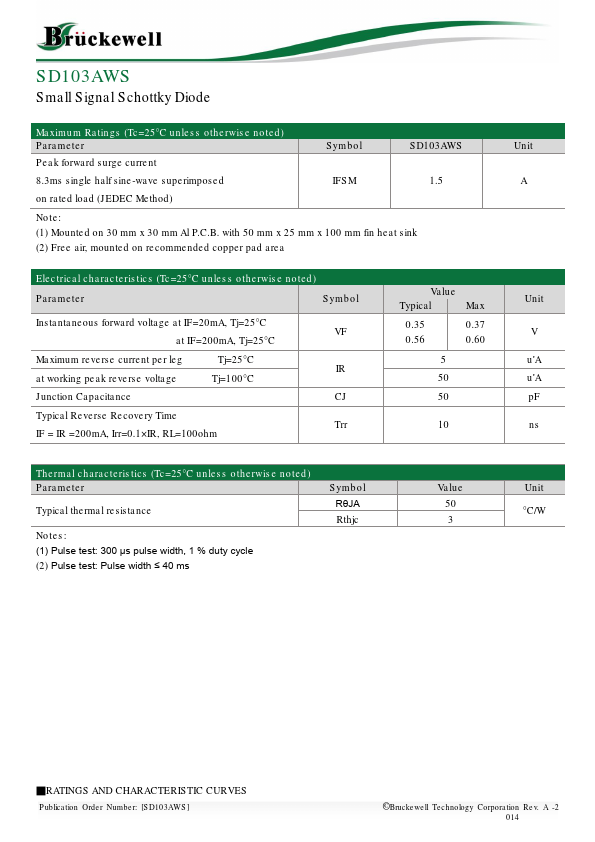

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Maximum Ratings (Tc=25°C unless otherwise noted)
Parameter
Symbol
Unit
Maximum repetitive peak reverse voltage
VRRM
Working peak reverse voltage
VRWM
Maximum DC blocking voltage
Maximum average forward rectified current
IF(AV)
Operating junction temperature range
-55 to...
