DF1760U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

Download the DF1760U datasheet PDF (DF1760P included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 20-bit digital-to-analog converter.

Description

The PCM1760 and DF1760 combine for a low-cost, high-performance dual 20-bit, 48kHz sampling analog-to-digital conversion system which is specifically designed for dynamic applications.

The PCM1760/DF1760 pair form a 4-bit, 4th order, 64X oversampling analog-to-digital converter.

Features

  • q DUAL 20-BIT.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DF1760P-BurrBrown.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • DF170S - DF SERIES 15 AMP THERMAL CUTOFFS (Thermtrol Corporation)
  • DF10 - Miniature Glass Passivated Single-Phase Bridge Rectifier (GOOD-ARK)
  • DF10 - 1.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • DF10 - Glass Passivated Bridge Rectifier (Eris)
  • DF10 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER (SEMTECH)
  • DF10 - Silicon Bridge Rectifiers (TGS)
  • DF10 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • DF10 - SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS (PACELEADER)
  • DF10 - 1.0A BRIDGE RECTIFIER (Vishay)
  • DF10 - SINGLE-PHASE GLASS BRIDGE (CHENG-YI)
Other Datasheets by Burr-Brown
  • DF1760P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • DF1700 - Dual-Channel 8x Oversampling DIGITAL FILTER
  • DF1704 - 24-Bit 8X Oversampling Digital Interpolation Filter

Full PDF Text Transcription

Click to expand full text

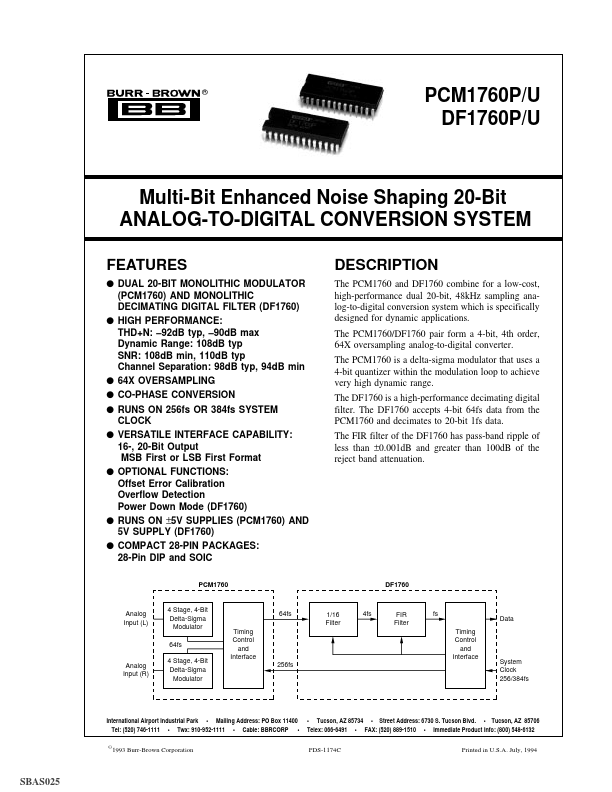

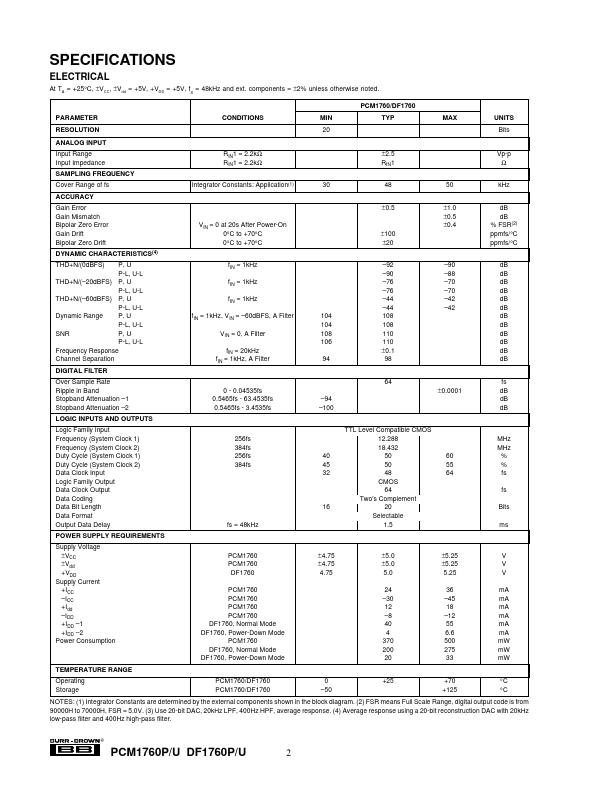

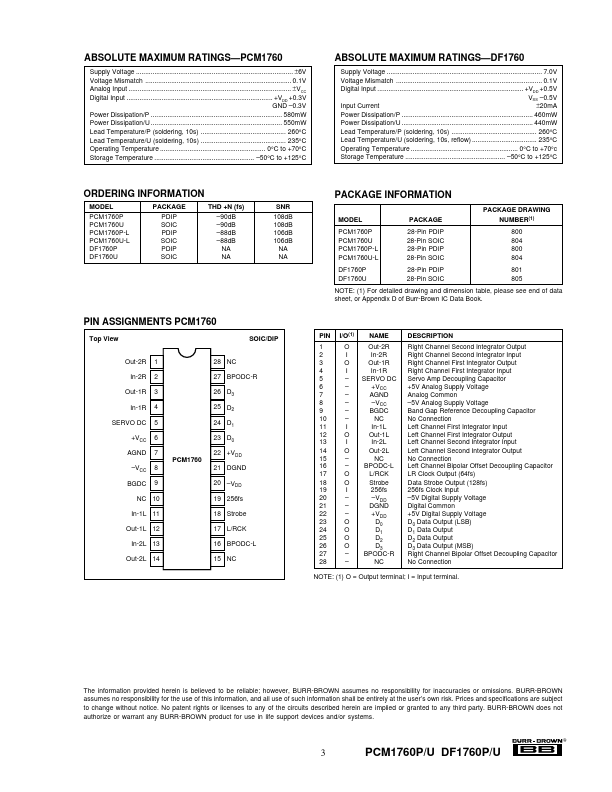

® PCM1760P/U DF1760P/U SBAS025 Multi-Bit Enhanced Noise Shaping 20-Bit ANALOG-TO-DIGITAL CONVERSION SYSTEM FEATURES q DUAL 20-BIT MONOLITHIC MODULATOR (PCM1760) AND MONOLITHIC DECIMATING DIGITAL FILTER (DF1760) q HIGH PERFORMANCE: THD+N: –92dB typ, –90dB max Dynamic Range: 108dB typ SNR: 108dB min, 110dB typ Channel Separation: 98dB typ, 94dB min q 64X OVERSAMPLING q CO-PHASE CONVERSION q RUNS ON 256fs OR 384fs SYSTEM CLOCK q VERSATILE INTERFACE CAPABILITY: 16-, 20-Bit Output MSB First or LSB First Format q OPTIONAL FUNCTIONS: Offset Error Calibration Overflow Detection Power Down Mode (DF1760) q RUNS ON ±5V SUPPLIES (PCM1760) AND 5V SUPPLY (DF1760) q COMPACT 28-PIN PACKAGES: 28-Pin DIP and SOIC DESCRIPTION The PCM1760 and DF1760 combine for a low-cost, high-performance dual 20-bit,
