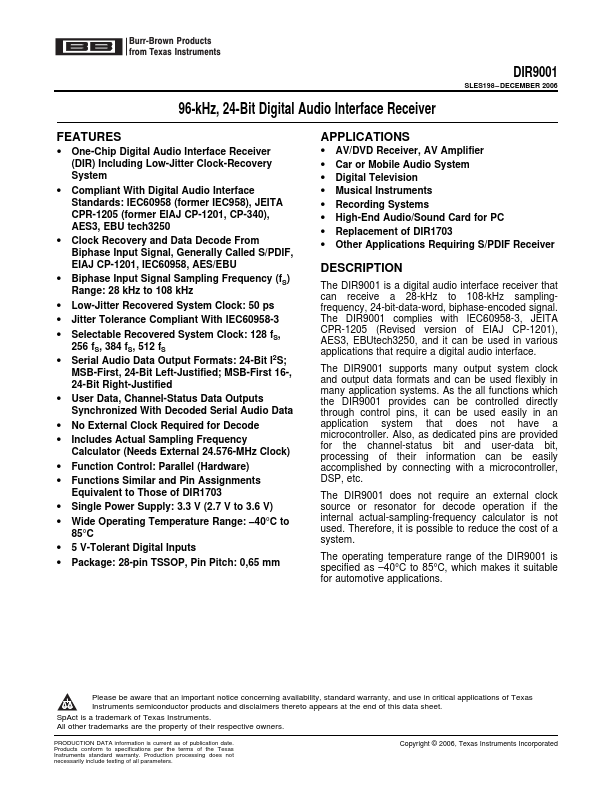

BurrĆBrown Products from Texas Instruments
96-kHz, 24-Bit Digital Audio Interface Receiver
DIR9001
SLES198 – DECEMBER 2006
FEATURES
• One-Chip Digital Audio Interface Receiver (DIR) Including Low-Jitter Clock-Recovery System
• Compliant With Digital Audio Interface Standards: IEC60958 (former IEC958), JEITA CPR-1205 (former EIAJ CP-1201, CP-340), AES3, EBU tech3250
• Clock Recovery and Data Decode From Biphase Input Signal, Generally Called S/PDIF, EIAJ CP-1201, IEC60958, AES/EBU
• Biphase Input Signal Sampling Frequency (fS) Range: 28 kHz to 108 kHz
• Low-Jitter Recovered System Clock: 50 ps • Jitter Tolerance Compliant With IEC60958-3 • Selectable Recovered System Clock: 128 fS,
256 fS, 384 fS, 512 fS • Serial Audio Data Output Formats: 24-Bit I2S;
MSB-First, 24-Bit Left-Justified; MSB
