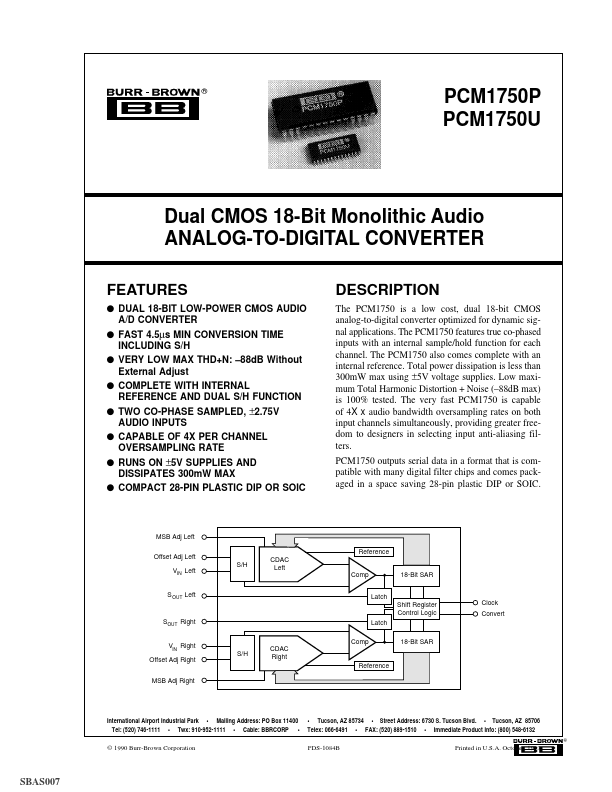

PCM1750P
FEATURES q DUAL 18-BIT LOW-POWER CMOS AUDIO A/D CONVERTER q FAST 4.5µs MIN CONVERSION TIME INCLUDING S/H q VERY LOW MAX THD+N:
- 88d B Without External Adjust q PLETE WITH INTERNAL REFERENCE AND DUAL S/H FUNCTION q TWO CO-PHASE SAMPLED, ±2.75V AUDIO INPUTS q CAPABLE OF 4X PER CHANNEL OVERSAMPLING RATE q RUNS ON ±5V SUPPLIES AND DISSIPATES 300m W MAX q PACT 28-PIN PLASTIC DIP OR SOIC
DESCRIPTION
The PCM1750 is a low cost, dual 18-bit CMOS analog-to-digital converter optimized for dynamic signal applications. The PCM1750 features true co-phased inputs with an internal sample/hold function for each channel. The PCM1750 also es plete with an internal reference. Total power dissipation is less than 300m W max using ±5V voltage supplies. Low maximum Total Harmonic Distortion + Noise (- 88d B max) is 100% tested. The very fast PCM1750 is capable of 4X x audio bandwidth oversampling rates on both input channels simultaneously, providing greater freedom to designers in selecting input anti-aliasing...
