PCM1796 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1796 is a monolithic CMOS integrated circuit that includes stereo digital-to-analog converters and support circuitry in a small 28-lead SSOP package.

The data converters use TI’s advanced segment DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.

Features

  • D 24-Bit Resolution D Analog Performance:.
  • Dynamic Range: 123 dB.
  • THD+N: 0.0005% D Differential Current Output: 4 mA p-p D 8× Oversampling Digital Filter:.
  • Stop-Band Attenuation:.
  • 98 dB.
  • Pass-Band Ripple: ±0.0002 dB D Sampling Frequency: 10 kHz to 200 kHz D System Clock: 128, 192, 256, 384, 512, or 768 fS With Autodetect D Accepts 16-, 20-, and 24-Bit Audio Data D PCM Data Formats: Standard, I2S, and Left-Justified D DSD Format Interface Available D In.

📥 Download Datasheet

Datasheet preview – PCM1796

📁 Similar Datasheet

  • PCM1794A - Audio Stereo Digital-to-Analog Converter (Texas Instruments)
  • PCM1794A-Q1 - Audio Stereo Digital-to-Analog Converter (Texas Instruments)
  • PCM1795 - Stereo Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1798 - Audio Stereo Digital-to-Analog Converter (Texas Instruments)
  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1791A - Audio Stereo Digital-to-Analog Converter
  • PCM1792 - Audio Stereo Digital-to-Analog Converter
  • PCM1792A - audio stereo digital-to-analog converter
  • PCM1793 - Audio Stereo Digital-to-Analog Converter
  • PCM1794 - Audio Stereo Digital-to-Analog Converter
  • PCM1794A - audio stereo digital-to-analog converter
  • PCM1798 - AUDIO STEREO DIGITAL TO ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter

Full PDF Text Transcription

Click to expand full text

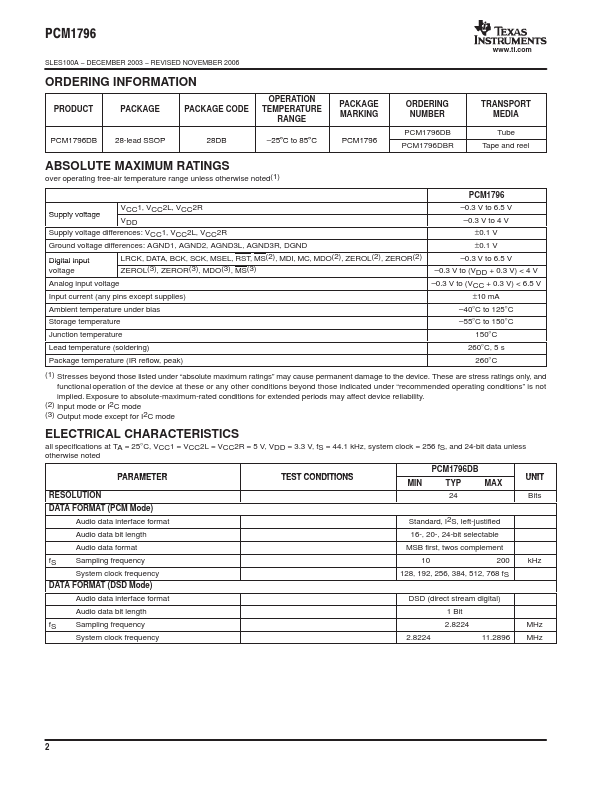

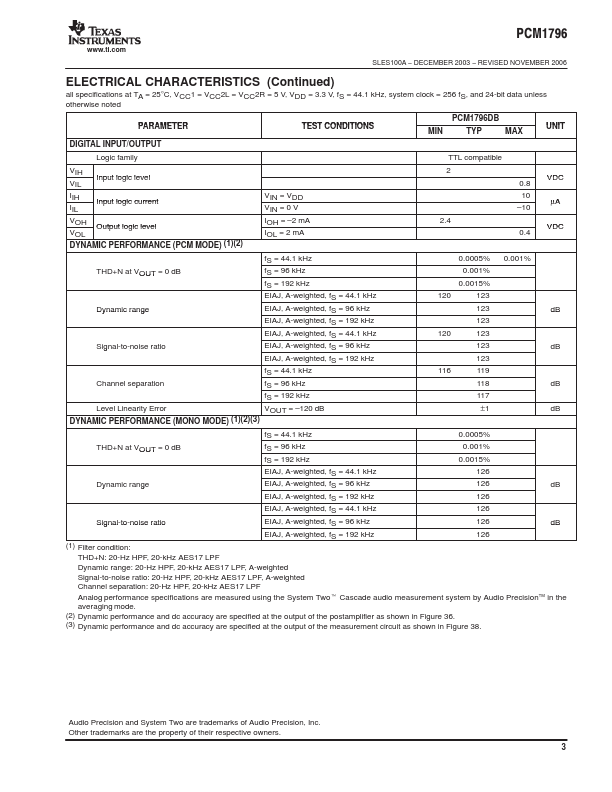

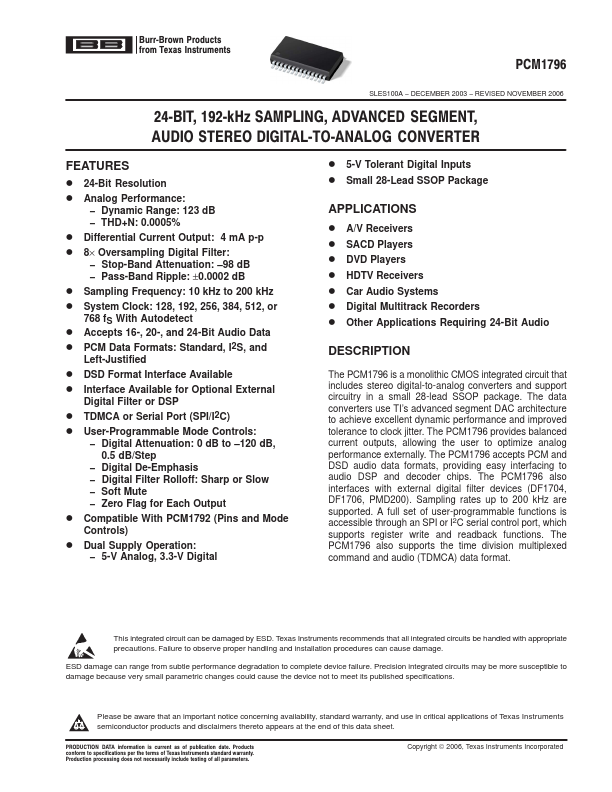

BurrĆBrown Products from Texas Instruments PCM1796 SLES100A − DECEMBER 2003 − REVISED NOVEMBER 2006 24ĆBIT, 192ĆkHz SAMPLING, ADVANCED SEGMENT, AUDIO STEREO DIGITALĆTOĆANALOG CONVERTER FEATURES D 24-Bit Resolution D Analog Performance: − Dynamic Range: 123 dB − THD+N: 0.0005% D Differential Current Output: 4 mA p-p D 8× Oversampling Digital Filter: − Stop-Band Attenuation: –98 dB − Pass-Band Ripple: ±0.
