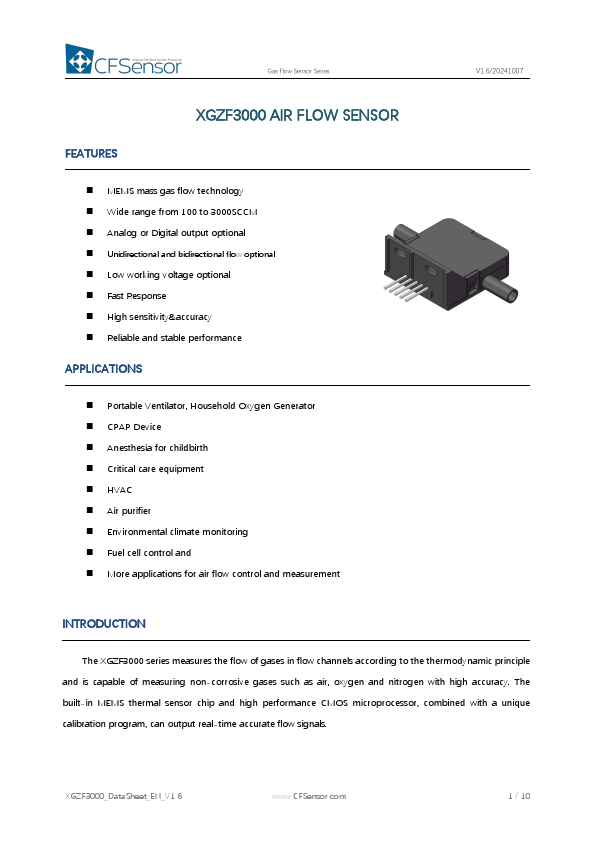

CFSensor XGZF3000
The XGZF3000 series measures the flow of gases in flow channels according to the thermodynamic principle and is capable of measuring non-corrosive gases such as air, oxygen and nitrogen with high accuracy. The built-in MEMS thermal sensor chip and high performance CMOS microprocessor, combined with a unique calibration program, can output real-time accurate flow signals.| Part No. | XGZF3000 |
|---|---|
| Datasheet | XGZF3000 Download |
| Manufacturer |  CFSensor |
| Description | Gas Flow Sensor |
| Buy | Stock & Price |
FEATURES
● MEMS mass gas flow technology● Wide range from 100 to 3000SCCM
● Analog or Digital output optional
● Unidirectional and bidirectional flow optional
● Low working voltage optional
● Fast Response
● High sensitivity&accuracy
● Reliable and stable performance
APPLICATIONS
● Portable Ventilator, Household Oxygen Generator● CPAP Device
● Anesthesia for childbirth
● Critical care equipment
● HVAC
● Air purifier
● Environmental climate monitoring
● Fuel cell control and

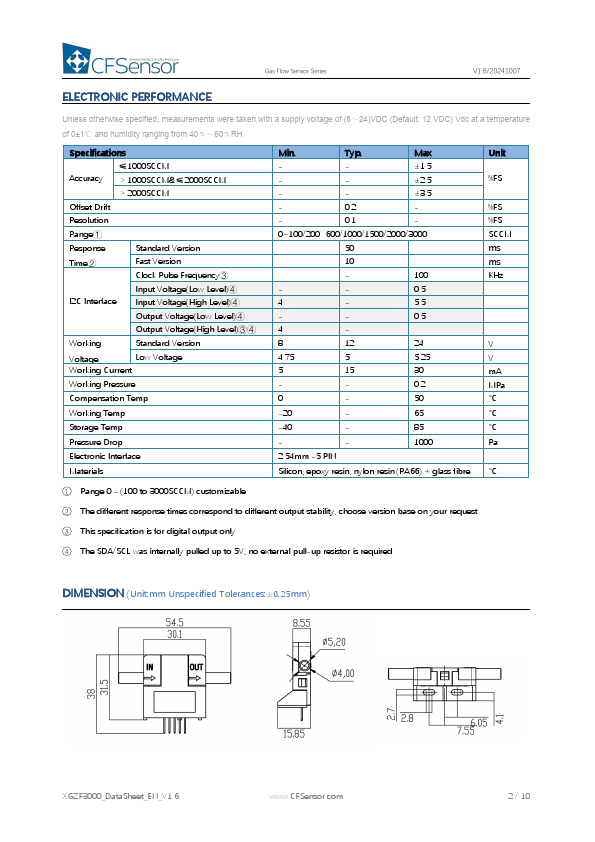

● More applications for air flow control and measurement V1.6/20241007 INTRODUCTION XGZF3000_DataSheet_EN_V1.6 1 / 10 Gas Flow Sensor Series V1.6/20241007 ELECTRONIC PERFORMANCE Unless otherwise specified, measurements were taken with a supply voltage of (8～24)VDC (Default: 12 VDC) Vdc at a temperature of 0±1℃ and humidity ranging from 40﹪～60﹪RH Specifications ≤1000SCCM Accuracy ＞1000SCCM&≤2000SCCM ＞2000SCCM Offset Drift Resolution Range① Response Standard Version Time② Fast Version Clock Pulse Frequency③ I2C Inte...
