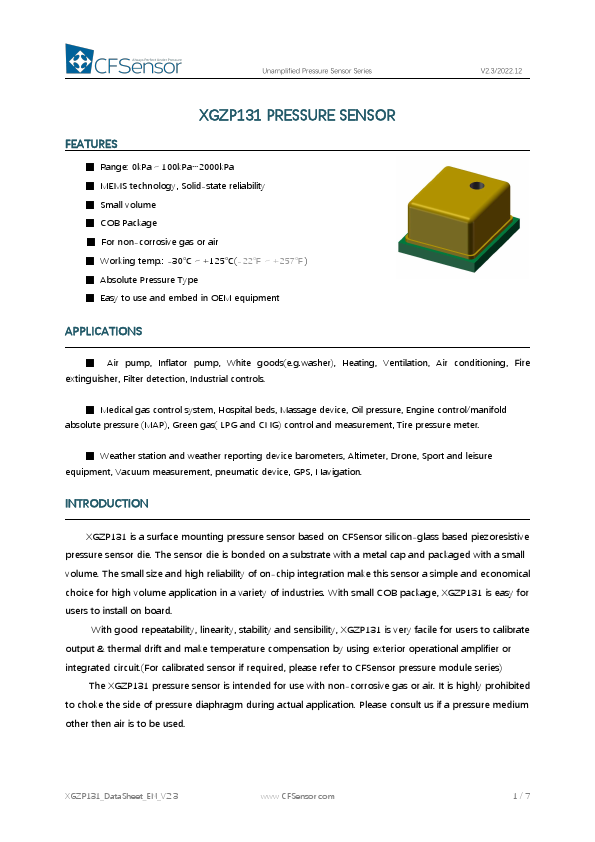

XGZP131 Datasheet | CFSensor

FEATURES - Range: 0k Pa～100k Pa…2000k Pa - MEMS technology, Solid-state reliability - Small volume - COB Package - For non-corrosive gas or air - Working temp.: -30℃～+125℃(-22℉～+257℉) - Absolute Pressure Type - Easy to use and embed in OEM equipment APPLICATIONS - Air pump, Inflator pump, White goods(e.g.washer), Heating, Ventilation, Air conditioning, Fire extinguisher, Filter detection, Industrial controls. - Medical gas control system, Hospital beds, Massage device, Oil pressure, Engine control/manifold absolute pressure (MAP), Green gas( LPG and CNG) control and measurement, Tire pressure meter. - Weather station and weather reporting device barometers, Altimeter, Drone, Sport and leisure equipment, Vacuum measurement, pneumatic device, GPS, Navigation. INTRODUCTION XGZP131 is a surface mounting pressure sensor based on CFSensor silicon-glass based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a metal cap and packaged with a small volume. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries. With small COB package, XGZP131 is easy for users to install on board. With good repeatability, linearity, stability and sensibility, XGZP131 is very facile for users to calibrate output & thermal drift and make temperature pensation by using exterior operational amplifier or integrated circuit.(For calibrated sensor if required, please refer to CFSensor pressure module series) The XGZP131 pressure sensor is intended for use with non-corrosive gas or air. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then air is to be used. XGZP131_Data Sheet_EN_V2.3 .CFSensor. 1/7 Unamplified Pressure Sensor Series Electronic Performance - Power Supply: ≤15Vdc or ≤3.0m Adc - Input Impedance : 4kΩ～6kΩ - Output Impedance : 4kΩ～6kΩ - Insulation Resistor:...
