XGZP6147 Datasheet | CFSensor

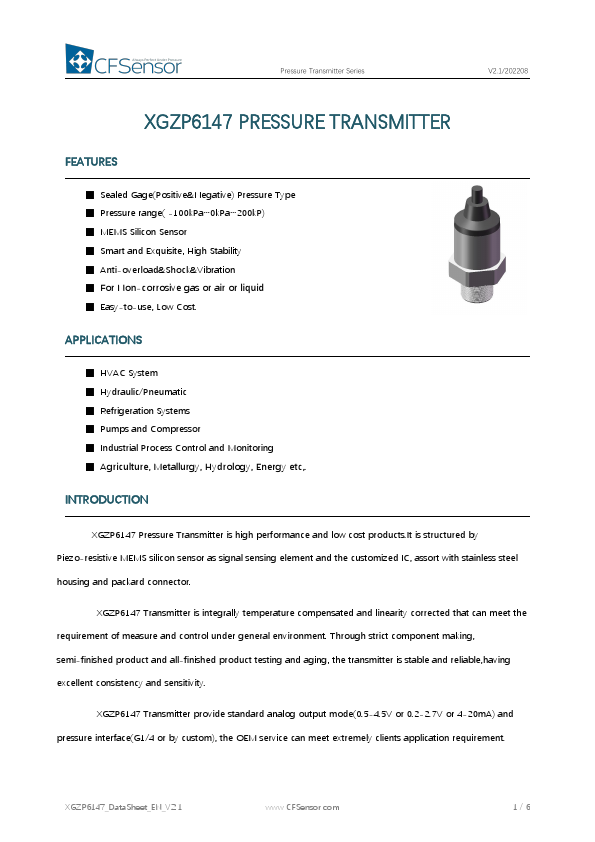

FEATURES - Sealed Gage(Positive&Negative) Pressure Type - Pressure range( -100k Pa…0k Pa…200k P) - MEMS Silicon Sensor - Smart and Exquisite, High Stability - Anti-overload&Shock&Vibration - For Non-corrosive gas or air or liquid - Easy-to-use, Low Cost. APPLICATIONS - HVAC System - Hydraulic/Pneumatic - Refrigeration Systems - Pumps and pressor - Industrial Process Control and Monitoring - Agriculture, Metallurgy, Hydrology, Energy etc,. INTRODUCTION XGZP6147 Pressure Transmitter is high performance and low cost products.It is structured by Piezo-resistive MEMS silicon sensor as signal sensing element and the customized IC, assort with stainless steel housing and packard connector. XGZP6147 Transmitter is integrally temperature pensated and linearity corrected that can meet the requirement of measure and control under general environment. Through strict ponent making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable,having excellent consistency and sensitivity. XGZP6147 Transmitter provide standard analog output mode(0.5-4.5V or 0.2-2.7V or 4-20m A) and pressure interface(G1/4 or by custom), the OEM service can meet extremely clients application requirement. XGZP6147_Data Sheet_EN_V2.1 .CFSensor. 1/6 Pressure Transmitter Series V2.1/202208 PERFORMANCE PARAMETER Unless otherwise specified, measurements were taken with a a temperature of 25±1℃ and humidity ranging from 25﹪～ 85%RH(supply voltage:3.3V～5.0Vdc) Item Accuracy(non-lin., rep. and hys...）1 Long Term Stability(1 Year)2 Insulation Impedance（250Vdc） Over pressure3 Burst Pressure4 Pressure Circulation(Zero- Span) pensation Temp.5 Operating Temp. Storage Temp. Housing Material Socket Connector Protection Grade Data ±1.5 ±1 50 2× 3× 1 0 ～ 60/32 ～ 140 -20 ～ 100/-4 ～ 212 -20 ～ 125/-4 ～ 257 304 Stainless Steel Plastic IP65 Unit %Span %Span MΩ Rated Rated Million ℃/℉ ℃/℉ ℃/℉ 1 Accuracy: The max. deviation in output from ideal transfer function at any...
