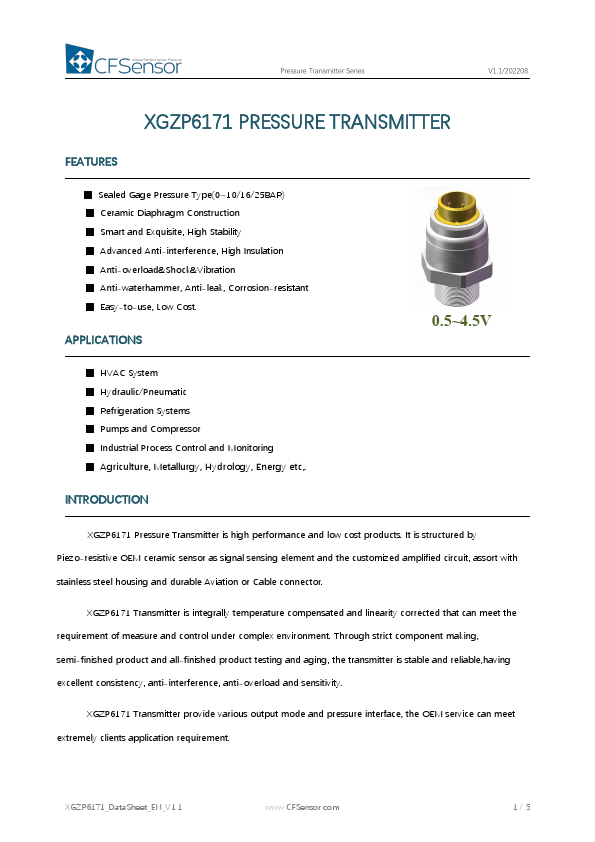

XGZP6171 Datasheet | CFSensor

FEATURES - Sealed Gage Pressure Type(0~10/16/25BAR) - Ceramic Diaphragm Construction - Smart and Exquisite, High Stability - Advanced Anti-interference, High Insulation - Anti-overload&Shock&Vibration - Anti-waterhammer, Anti-leak, Corrosion-resistant - Easy-to-use, Low Cost. APPLICATIONS 0.5~4.5V - HVAC System - Hydraulic/Pneumatic - Refrigeration Systems - Pumps and pressor - Industrial Process Control and Monitoring - Agriculture, Metallurgy, Hydrology, Energy etc,. INTRODUCTION XGZP6171 Pressure Transmitter is high performance and low cost products. It is structured by Piezo-resistive OEM ceramic sensor as signal sensing element and the customized amplified circuit, assort with stainless steel housing and durable Aviation or Cable connector. XGZP6171 Transmitter is integrally temperature pensated and linearity corrected that can meet the requirement of measure and control under plex environment. Through strict ponent making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable,having excellent consistency, anti-interference, anti-overload and sensitivity. XGZP6171 Transmitter provide various output mode and pressure interface, the OEM service can meet extremely clients application requirement. XGZP6171_Data Sheet_EN_V1.1 .CFSensor. 1/5 Pressure Transmitter Series V1.1/202208 PERFORMANCE PARAMETER Unless otherwise specified, measurements were taken with a a temperature of 25±1℃ and humidity ranging from 25﹪～ 85%RH(supply voltage:3.3V～5.0Vdc) Item Accuracy(non-lin., rep. and hys...）1 Long Term Stability(1 Year)2 Insulation Impedance（250Vdc） Over pressure3 Burst Pressure4 Pressure Circulation(Zero- Span) pensation Temp.5 Operating Temp. Storage Temp. Housing Material Socket Connector Protection Grade Data ±1.0 ±1 50 2× 3× 1 0 ～ 85/32～176 0 ～ 125/32～257 -40 ～ 125/-40～257 304 Stainless Steel Plastic IP65 Unit %Span %Span MΩ Rated Rated Million ℃/℉ ℃/℉ ℃/℉ 1 Accuracy: The max. deviation in output from...
