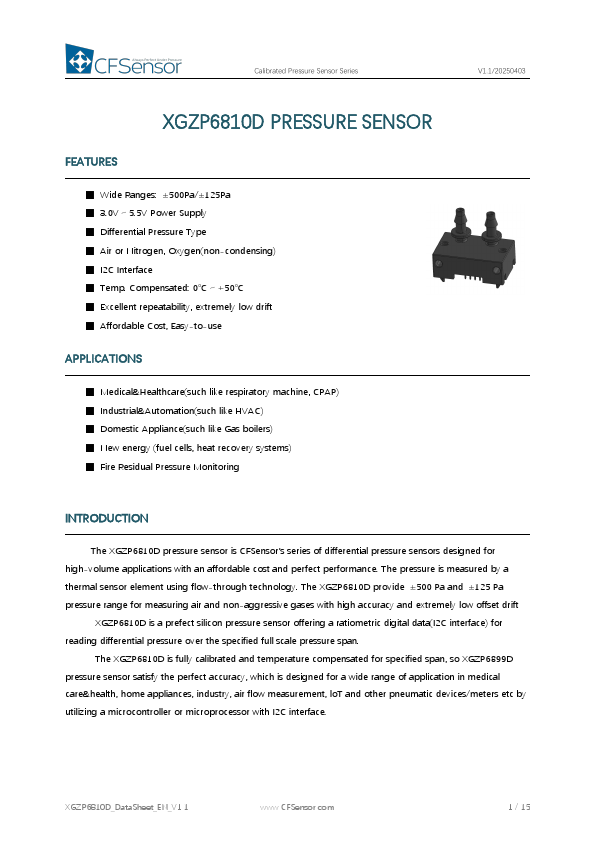

CFSensor XGZP6810D
The XGZP6810D pressure sensor is CFSensor’s series of differential pressure sensors designed for high-volume applications with an affordable cost and perfect performance. The pressure is measured by a thermal sensor element using flow-through technology. The XGZP6810D provide ±500 Pa and ±125 Pa pressure range for measuring air and non-aggressive gases with high accuracy and extremely low offset drift XGZP6810D is a prefect silicon pressure sensor offering a ratiometric digital data(I2C interface) for reading differential pressure over the specified full scale pressure span.| Part No. | XGZP6810D |
|---|---|
| Datasheet | XGZP6810D Download |
| Manufacturer |  CFSensor |
| Description | Calibrated Pressure Sensor |
| Buy | Stock & Price |
FEATURES
● Wide Ranges: ±500Pa/±125Pa● 3.0V～5.5V Power Supply
● Differential Pressure Type
● Air or Nitrogen, Oxygen(non-condensing)
● I2C Interface
● Temp. Compensated: 0℃～+50℃
● Excellent repeatability, extremely low drift
● Affordable Cost, Easy-to-use
APPLICATIONS
● Medical&Healthcare(such like respiratory machine, CPAP)● Industrial&Automation(such like HVAC)
● Domestic Appliance(such like Gas boilers)
● New energy (fuel cells, heat recovery systems)
● Fire Residual Pressure Monitoring V1.1/20250403 INTRODUCTION The XGZP6810D is fully calibrated and temperature compensated for specified span, so XGZP6899D pressure sensor satisfy the perfect accuracy, which is designed for a wide range of application in medical care&health, home appliances, industry, air flow measurement, loT and other pneumatic devices/meters etc by utilizing a microcontroller or microprocessor with I2C interface. XGZP6810D_DataSheet_EN_V1.1 1 / 15 Calibrated Pressure Sensor Series V1.1/20250403 PERFORMANCE SPECIFICATION Unless otherwise specified, measurements were taken by 5Vdc with temperature of 25±1℃ and humidity from 40%～60﹪RH.
