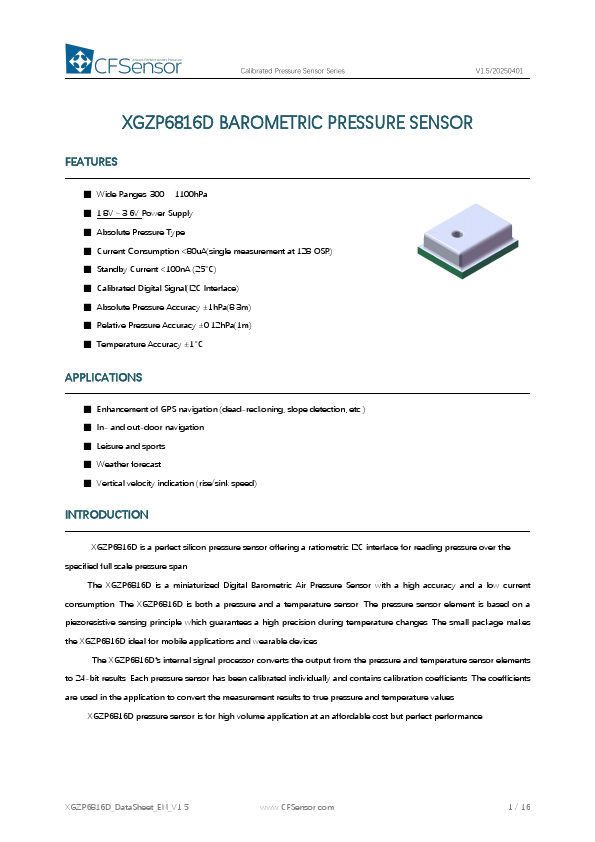

Calibrated Pressure Sensor Series
V1.5/20250401
XGZP6816D BAROMETRIC PRESSURE SENSOR
FEATURES
■ Wide Ranges: 300 ... 1100hPa ■ 1.8V～3.6V Power Supply ■ Absolute Pressure Type
■ Current Consumption:<80uA(single measurement at 128 OSR)
■ Standby Current:<100nA (25°C) ■ Calibrated Digital Signal(I2C Interface) ■ Absolute Pressure Accuracy:±1hPa(8.3m) ■ Relative Pressure Accuracy:±0.12hPa(1m) ■ Temperature Accuracy:±1°C
APPLICATIONS
■ Enhancement of GPS navigation (dead-reckoning, slope detection, etc.) ■ In- and out-door navigation ■ Leisure and sports ■ Weather forecast ■ Vertical velocity indication (rise/sink speed)
INTRODUCTION
XGZP6816D is a perfect silicon pressure sensor offering a ratiometric I2C interface for reading pressure over the specified full scale pressure span.
XGZP6816D Datasheet
