XGZP6828D - Calibrated Pressure Sensor

CFSensor

Key Features

Wide Ranges: 0kPa～100kPa…2500kPa(show in Pressure Range).
Optional 2.5V～5.5V Power Supply.
Absolute Pressure Type.
For Non-corrosive Gas or Air.
Calibrated Digital Signal(I2C Interface)(Refer to XGZP6828A for Analog signal).
Temp. Compensated.
Current Consumption: 5uA(single measurement).
Standby Current:.

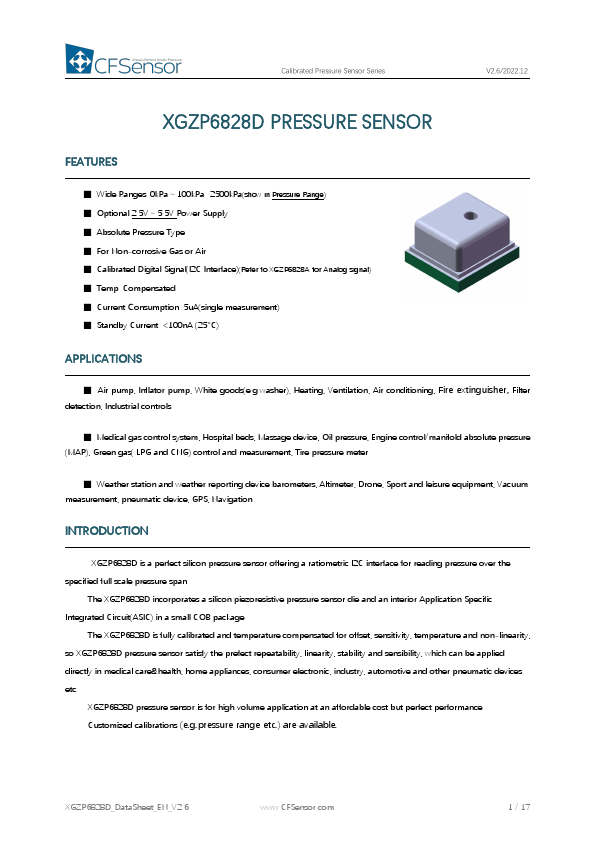

XGZP6828D calibrated pressure sensor by CFSensor - Datasheet Preview

Datasheet Details

Part number	XGZP6828D
Manufacturer	CFSensor
File Size	1.13 MB
Description	Calibrated Pressure Sensor
Datasheet	XGZP6828D Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by CFSensor

Part Number	Description
XGZP6806D	BAROMETRIC PRESSURE SENSOR
XGZP6810D	Calibrated Pressure Sensor
XGZP6816D	Calibrated Pressure Sensor
XGZP6818A	Calibrated Pressure Sensor
XGZP6841A	Calibrated Pressure Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Calibrated Pressure Sensor Series V2.6/2022.12 XGZP6828D PRESSURE SENSOR FEATURES ■ Wide Ranges: 0kPa～100kPa…2500kPa(show in Pressure Range) ■ Optional 2.5V～5.5V Power Supply ■ Absolute Pressure Type ■ For Non-corrosive Gas or Air ■ Calibrated Digital Signal(I2C Interface)(Refer to XGZP6828A for Analog signal) ■ Temp. Compensated ■ Current Consumption: 5uA(single measurement) ■ Standby Current: <100nA (25°C) APPLICATIONS ■ Air pump, Inflator pump, White goods(e.g.washer), Heating, Ventilation, Air conditioning, Fire extinguisher, Filter detection, Industrial controls. ■ Medical gas control system, Hospital beds, Massage device, Oil pressure, Engine control/manifold absolute pressure (MAP), Green gas( LPG and CNG) control and measurement, Tire pressure meter.
