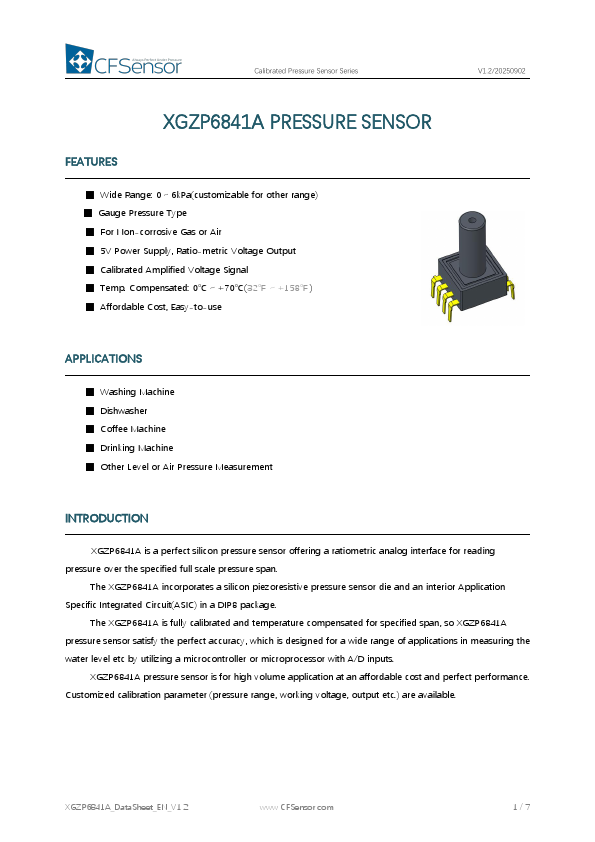

CFSensor XGZP6841A
XGZP6841A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span. The XGZP6841A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a DIP8 package. The XGZP6841A is fully calibrated and temperature compensated for specified span, so XGZP6841A pressure sensor satisfy the perfect accuracy, which is designed for a wide range of applications in measuring the water level etc by utilizing a microcontroller or microprocessor with A/D inputs.| Part No. | XGZP6841A |
|---|---|
| Datasheet | XGZP6841A Download |
| Manufacturer |  CFSensor |
| Description | Calibrated Pressure Sensor |
| Buy | Stock & Price |
FEATURES
● Wide Range: 0～6kPa(customizable for other range)● Gauge Pressure Type
● For Non-corrosive Gas or Air
● 5V Power Supply, Ratio-metric Voltage Output
● Calibrated Amplified Voltage Signal
● Temp. Compensated: 0℃～+70℃(32℉～+158℉)
● Affordable Cost, Easy-to-use V1.2/20250902
APPLICATIONS
● Washing Machine● Dishwasher
● Coffee Machine
● Drinking Machine
● Other Level or Air Pressure Measurement INTRODUCTION XGZP6841A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibration parameter (pressure range, working voltage, output etc.) are available. XGZP6841A_DataSheet_EN_V1.2 1/7 Calibrated Pressure Sensor Series V1.2/20250902 PERFORMANCE SPECIFICATION Unless otherwise specified, measurements were taken with a a temperature of 25±1℃ and humidity from 25%～85%RH CHARACTERISTIC MIN. TYP. MAX UNIT Available Pressure Range① Power Supply② Current Consumption Output Range③ 5Vdc Power Supply Total Accuracy 10kPa＜Pressure ≤200kPa Pre...
