XGZP6847A - Pressure Sensor Module

CFSensor

Key Features

Wide Ranges: -100kPa…0kPa…1500kPa(show in Pressure Range Example).
Gauge Pressure Type(Positive&Vacuum).
For Non-corrosive Gas or Air.
Optional 5V and 3.3V Voltage.
Calibrated Amplified Analog Signal(Refer to XGZP6847D for I2C interface).
Temp. Compensated: 0℃～+60℃(32℉～+140℉).
Affordable Cost, Easy-to-use.

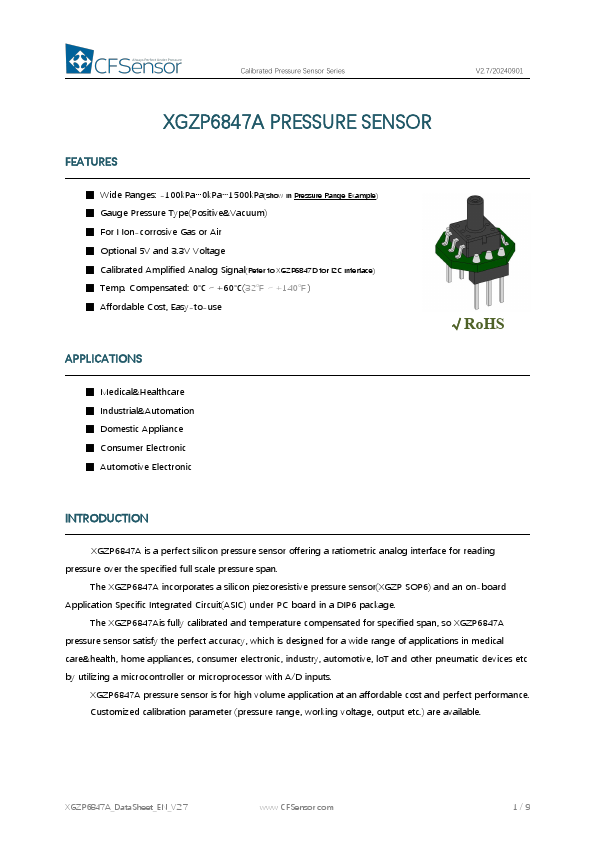

XGZP6847A pressure sensor module by CFSensor - Datasheet Preview

Datasheet Details

Part number	XGZP6847A
Manufacturer	CFSensor
File Size	728.76 KB
Description	Pressure Sensor Module
Datasheet	XGZP6847A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by CFSensor

Part Number	Description
XGZP6847	Pressure Sensor
XGZP6847D	Calibrated Pressure Sensor
XGZP6841A	Calibrated Pressure Sensor
XGZP6806D	BAROMETRIC PRESSURE SENSOR
XGZP6810D	Calibrated Pressure Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Calibrated Pressure Sensor Series V2.7/20240901 XGZP6847A PRESSURE SENSOR FEATURES ■ Wide Ranges: -100kPa…0kPa…1500kPa(show in Pressure Range Example) ■ Gauge Pressure Type(Positive&Vacuum) ■ For Non-corrosive Gas or Air ■ Optional 5V and 3.3V Voltage ■ Calibrated Amplified Analog Signal(Refer to XGZP6847D for I2C interface) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Affordable Cost, Easy-to-use APPLICATIONS ■ Medical&Healthcare ■ Industrial&Automation ■ Domestic Appliance ■ Consumer Electronic ■ Automotive Electronic √RoHS INTRODUCTION XGZP6847A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span.
