XGZP6855A Datasheet | CFSensor

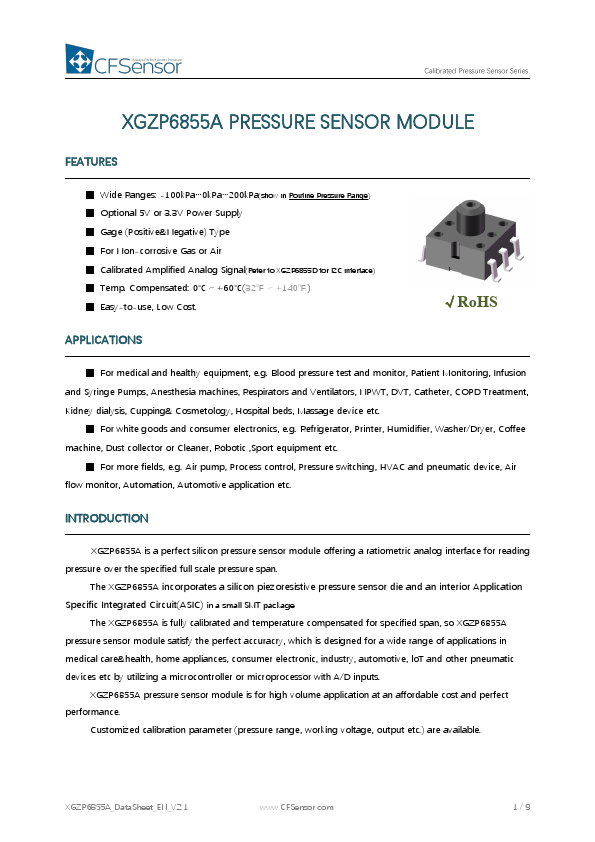

FEATURES - Wide Ranges: -100k Pa…0k Pa…200k Pa(show in Routine Pressure Range) - Optional 5V or 3.3V Power Supply - Gage (Positive&Negative) Type - For Non-corrosive Gas or Air - Calibrated Amplified Analog Signal(Refer to XGZP6855D for I2C interface) - Temp. pensated: 0℃～+60℃(32℉～+140℉) - Easy-to-use, Low Cost. √Ro HS APPLICATIONS - For medical and healthy equipment, e.g. Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia machines, Respirators and Ventilators, NPWT, DVT, Catheter, COPD Treatment, Kidney dialysis, Cupping& Cosmetology, Hospital beds, Massage device etc. - For white goods and consumer electronics, e.g. Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee machine, Dust collector or Cleaner, Robotic ,Sport equipment etc. - For more fields, e.g. Air pump, Process control, Pressure switching, HVAC and pneumatic device, Air flow monitor, Automation, Automotive application etc. INTRODUCTION XGZP6855A is a perfect silicon pressure sensor module offering a ratiometric analog interface for reading pressure over the specified full scale pressure span. The XGZP6855A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a small SMT package The XGZP6855A is fully calibrated and temperature pensated for specified span, so XGZP6855A pressure sensor module satisfy the perfect accuracry, which is designed for a wide range of applications in medical care&health, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs. XGZP6855A pressure sensor module is for high volume application at an affordable cost and perfect performance. Customized calibration parameter (pressure range, working voltage, output etc.) are available. XGZP6855A_Data Sheet_EN_V2.1 .CFSensor. 1/9 Calibrated Pressure Sensor Series PERFORMANCE PARAMETER Unless otherwise specified,...
