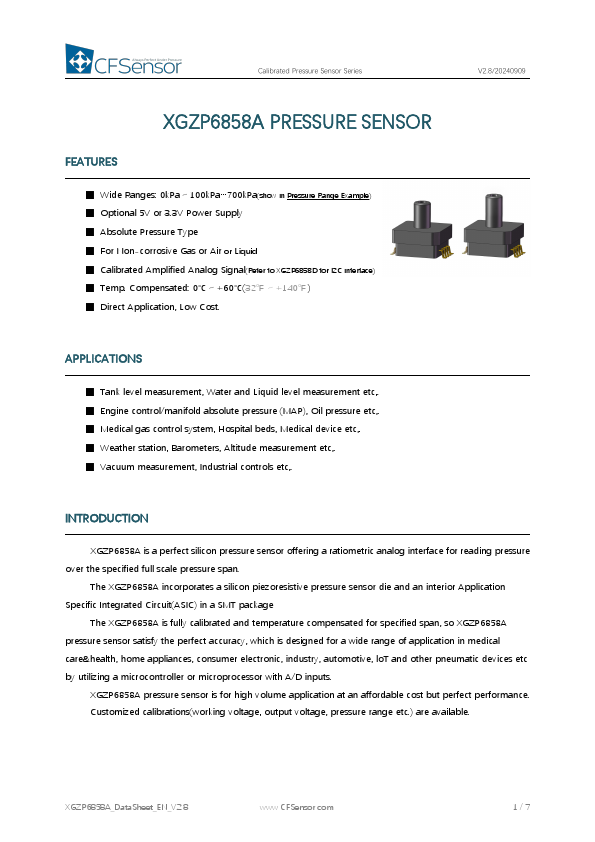

XGZP6858A
XGZP6858A is Calibrated Pressure Sensor manufactured by CFSensor.
FEATURES
- Wide Ranges: 0k Pa～100k Pa…700k Pa(show in Pressure Range Example)
- Optional 5V or 3.3V Power Supply
- Absolute Pressure Type
- For Non-corrosive Gas or Air or Liquid
- Calibrated Amplified Analog Signal(Refer to XGZP6858D for I2C interface)
- Temp. pensated: 0℃～+60℃(32℉～+140℉)
- Direct Application, Low Cost.
V2.8/20240909
APPLICATIONS
- Tank level measurement, Water and Liquid level measurement etc,.
- Engine control/manifold absolute pressure (MAP), Oil pressure etc,.
- Medical gas control system, Hospital beds, Medical device etc,.
- Weather station, Barometers, Altitude measurement etc,.
- Vacuum measurement, Industrial controls etc,.
INTRODUCTION
XGZP6858A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span.
The XGZP6858A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a SMT package
The XGZP6858A is fully calibrated and temperature pensated for specified span, so XGZP6858A pressure sensor satisfy the perfect accuracy, which is designed for a wide range of application in medical care&health, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs.
XGZP6858A pressure sensor is for high volume application at an affordable cost but perfect performance. Customized calibrations(working voltage, output voltage, pressure range etc.) are available.
XGZP6858A_Data Sheet_EN_V2.8
.CFSensor.
1/7
Calibrated Pressure Sensor Series
V2.8/20240909

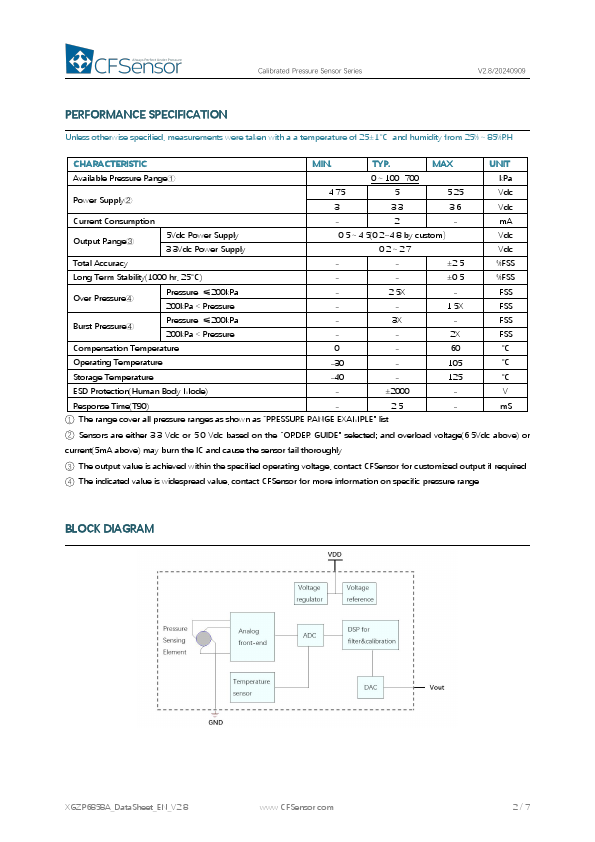

PERFORMANCE SPECIFICATION
Unless otherwise specified, measurements were taken with a a temperature of 25±1℃ and humidity from 25%～85%RH
CHARACTERISTIC
MIN.
TYP.
UNIT
Available Pressure Range①
0～100…700 k Pa
Power...
