XGZP6863A - Calibrated Pressure Sensor

CFSensor

Key Features

Wide Ranges: -100kPa…0kPa…1000kPa(show in Pressure Range Example).
Gauge Pressure Type(Positive&Vacuum).
For Non-corrosive Gas or Air.
Optional 5V and 3.3V Voltage.
Calibrated Amplified Analog Signal(Refer to XGZP6863D for I2C interface).
Temp. Compensated: 0℃～+60℃(32℉～+140℉).
Horizontal Inlet for Space Saving. √RoHS.

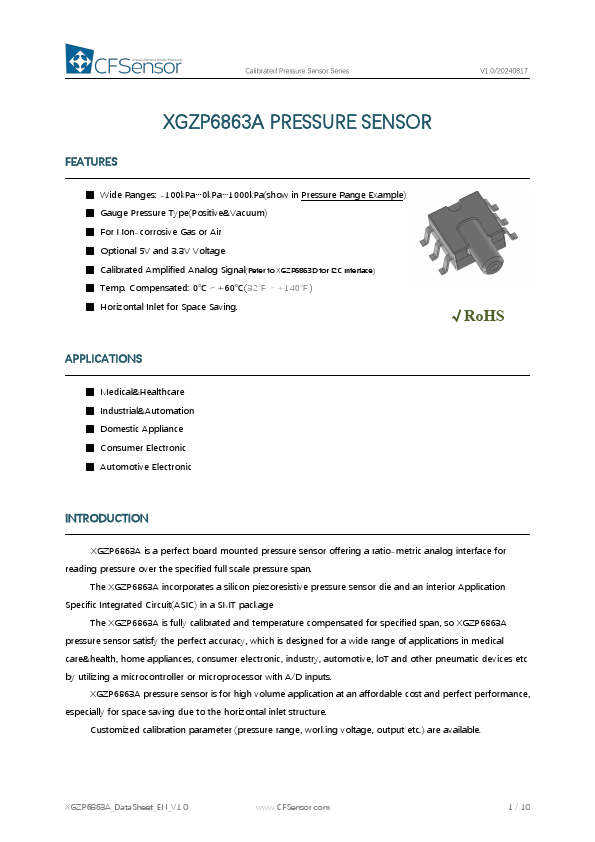

XGZP6863A calibrated pressure sensor by CFSensor - Datasheet Preview

Datasheet Details

Part number	XGZP6863A
Manufacturer	CFSensor
File Size	0.97 MB
Description	Calibrated Pressure Sensor
Datasheet	XGZP6863A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by CFSensor

Part Number	Description
XGZP6869A	Calibrated Pressure Sensor
XGZP6806D	BAROMETRIC PRESSURE SENSOR
XGZP6810D	Calibrated Pressure Sensor
XGZP6816D	Calibrated Pressure Sensor
XGZP6818A	Calibrated Pressure Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Calibrated Pressure Sensor Series V1.0/20240817 XGZP6863A PRESSURE SENSOR FEATURES ■ Wide Ranges: -100kPa…0kPa…1000kPa(show in Pressure Range Example) ■ Gauge Pressure Type(Positive&Vacuum) ■ For Non-corrosive Gas or Air ■ Optional 5V and 3.3V Voltage ■ Calibrated Amplified Analog Signal(Refer to XGZP6863D for I2C interface) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Horizontal Inlet for Space Saving. √RoHS APPLICATIONS ■ Medical&Healthcare ■ Industrial&Automation ■ Domestic Appliance ■ Consumer Electronic ■ Automotive Electronic INTRODUCTION XGZP6863A is a perfect board mounted pressure sensor offering a ratio-metric analog interface for reading pressure over the specified full scale pressure span.
