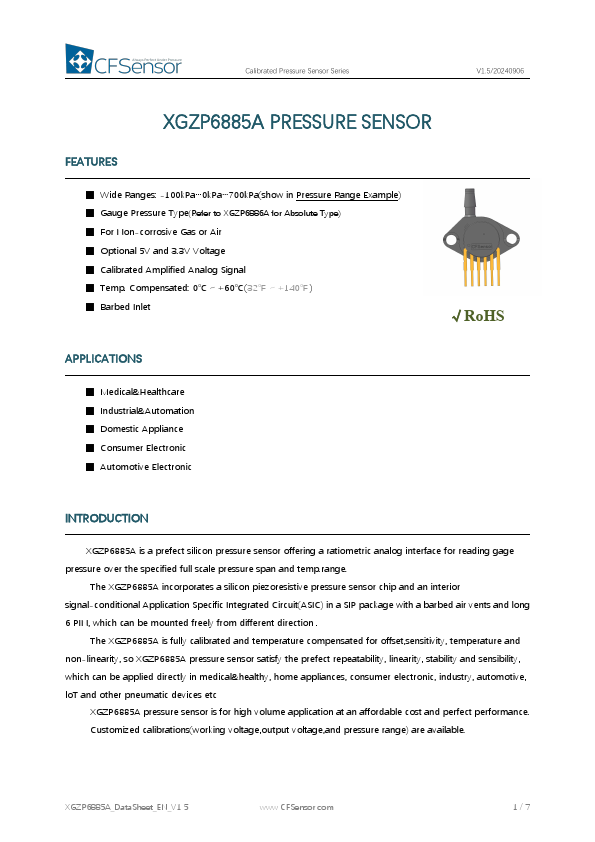

XGZP6885A
XGZP6885A is Calibrated Pressure Sensor manufactured by CFSensor.
FEATURES
- Wide Ranges: -100k Pa…0k Pa…700k Pa(show in Pressure Range Example)
- Gauge Pressure Type(Refer to XGZP6886A for Absolute Type)
- For Non-corrosive Gas or Air
- Optional 5V and 3.3V Voltage
- Calibrated Amplified Analog Signal
- Temp. pensated: 0℃～+60℃(32℉～+140℉)
- Barbed Inlet
√Ro HS
APPLICATIONS
- Medical&Healthcare
- Industrial&Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
INTRODUCTION
XGZP6885A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading gage pressure over the specified full scale pressure span and temp.range.
The XGZP6885A incorporates a silicon piezoresistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SIP package with a barbed air vents and long 6 PIN, which can be mounted freely from different direction .
The XGZP6885A is fully calibrated and temperature pensated for offset,sensitivity, temperature and non-linearity, so XGZP6885A pressure sensor satisfy the prefect repeatability, linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc
XGZP6885A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage,output voltage,and pressure range) are available.
XGZP6885A_Data Sheet_EN_V1.5
.CFSensor.
1/7
Calibrated Pressure Sensor Series
V1.5/20240906

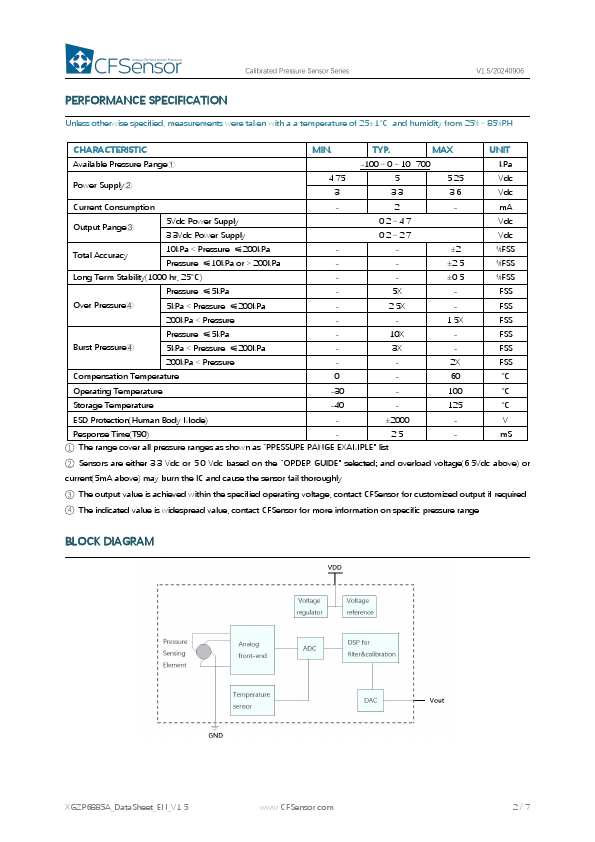

PERFORMANCE SPECIFICATION
Unless otherwise specified, measurements were taken with a a temperature of 25±1℃ and humidity from 25%～85%RH
CHARACTERISTIC
MIN.
TYP.
UNIT
Available Pressure Range①
Power Supply②
Current Consumption
Output Range③
5Vdc Power Supply 3.3Vdc Power Supply
Total Accuracy
10k Pa＜Pressure ≤200k Pa Pressure ≤10k Pa or＞200k Pa
Long Term Stability(1000 hr,...
